exchange cutting table fiber laser cutting machine

fiber laser cutting machine, exchange cutting table, 3000*1500mm, 2000*4000mm CNC cutting table.For cut thick metal, Max 20mm carbon steel and 12mm stainless steel. The machine can iequip IPG / Raycus/ N light fiber laser source.Cutting speed fast. Safety operate.

  • SL-3015FS- 2000W
  • Speedy Laser
  • 8456110090
Quantity:

   3000*1500mm / 4000*2000mm exchange cutting table fiber laser cutting machine 2000W 3000W 4000W

Machine features:

1).Laser power: 1500W / 2000W 3000W 4000W IPG / Raycus fiber laser source.Max laser life can reach 100,000 hours.

2). Cutting table size :  3000*1500mm with exchange cutting table.


3). CYPCUT software support DWG,PLT cutting file.

4).Smooth cutting surface,little deformation,pretty leveling appearance.

5).Import German ATLANTA rack and pinion,rail from Taiwan Hiwin,servo motor from Japan Fuji.

6).Dedicated software enables graphic or text into instantly designed pr processed. Flexible and easy operation.

4000W laser cutting machine cutting video on Youtube:

Technical parameters:

Technical Parameter
       1      Laser Wavelength                       1070nm
       2       Maximum Power             1500W / 2000W/ 3000W / 4000W
       3      Accelaration                        1.2 G
       4     Power Consumption (2000W )                       18 KW
       5     Max Speed                    about 60m/min
      6     Min Line width 0.15mm (for materials with thickness less than 0.4mm), depends on the sheet thickness
      7     Cutting Thickness ( 4000W )    MS: max 22mm, mass production 20mm
   SS: max 12 mm, mass production10-12mm
      8     Max.Cutting metal sheet size    3000*1500mm with exchange table
      9    Cutting Table Mechanical Accuracy        ±  0.05 mm
    10    X,Y,Z Repeated Positioning Precision        ± 0.02 mm
    11   Power Supply: Three-phase 5 wires AC 380V± 5% , 50Hz-60Hz

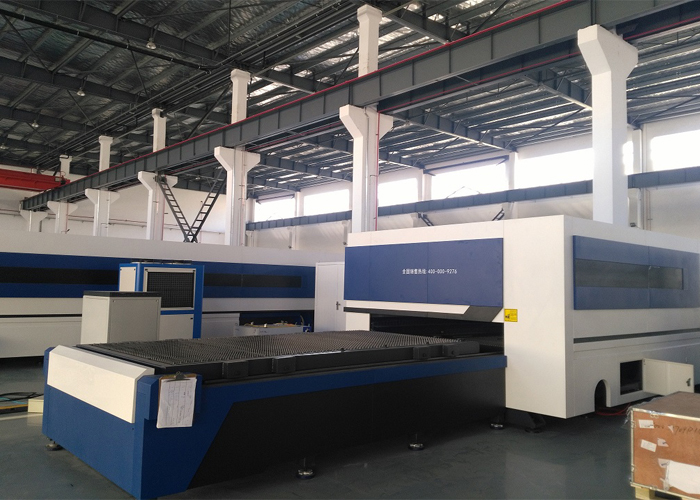

 3000*1500mm / 4000*2000mm exchange cutting table fiber laser cutting machine 2000W 3000W 4000W

laser metal cutting machine4000W laser cutting machine

     3000*1500mm / 4000*2000mm exchange cutting table fiber laser cutting machine 2000W 3000W 4000W

 fiber laser cutting machine 1KW

metal laser cutting machine

 3000*1500mm / 4000*2000mm exchange cutting table fiber laser cutting machine 2000W 3000W 4000W

    3000*1500mm / 4000*2000mm exchange cutting table fiber laser cutting machine 2000W 3000W 4000W

cutting-samples
