SL-WF 1000W / 1500W
Speedy Laser
8015809090
| Laser Power: | |
|---|---|
| Welding Products: | |
| Quantity: | |
The fiber continuous welding machine is a high-end, new type of welding method. The laser beam is coupled to the fiber, and
after being transmitted over a long distance, it is processed into parallel light. Focusing on the workpiece to carry out continuous welding, the welding effect is stronger and the weld seam is more fine and beautiful due to the continuity of the light output. According to the different needs of different industries, the equipment can meet the needs of users in different industries, such as advertisment letters, metal plate, cabinet, shelf, door, window, elevator, Washing Basin, etc. many metal products industries.
Technical parameters:
NO | Technical Parameter | |
Machine model | SL-WF 1000W | SL-WF 1500W |
Laser power | 1000W | 1500W |
Laser wavelength | 1080±3nm | 1080±3nm |
Beam quality | M2＜1.2 | M2＜1.2 |
Welding thickness | ≤ 2mm stainless steel | ≤ 3mm stainless steel |
Welding gap penetration | ＜0.2mm | ＜0.2mm |
Penetration | ≤ 2mm | ≤ 2mm |
Fiber length | 10M | 10M |
Welding head | Auto wire feeder Welding head | |
Power consumption | ≤ 5KW | ≤ 6 KW |
Water cooling | Customized industrial double temperature water cooling system | |
Power supply | 220V + 10% 3P + PE | |
Working temperature | 0-35 degree | |
Working humidity | 70% | |
Machine packing | Standard export wooden packing | |

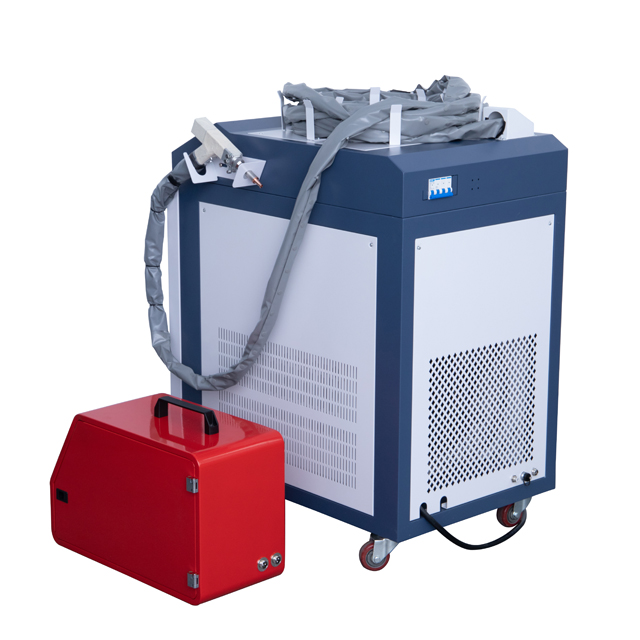

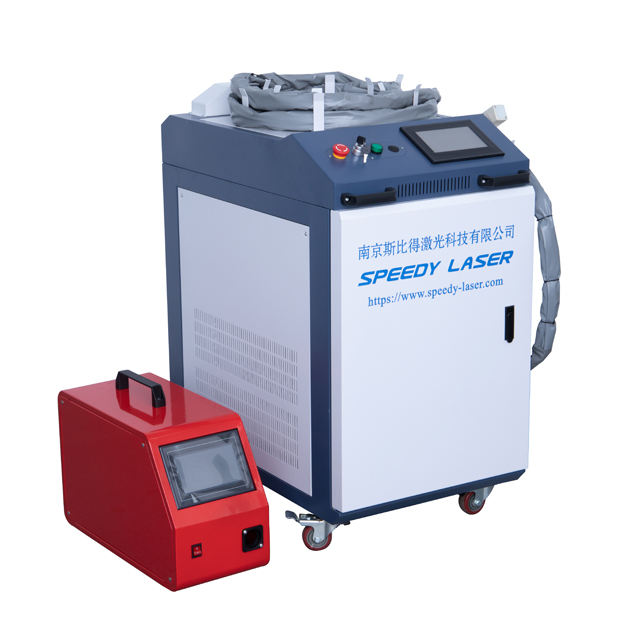

Hand held 1000W 1500W fiber laser welding machine with Hand held welding machine
The fiber continuous welding machine is a high-end, new type of welding method. The laser beam is coupled to the fiber, and
after being transmitted over a long distance, it is processed into parallel light. Focusing on the workpiece to carry out continuous welding, the welding effect is stronger and the weld seam is more fine and beautiful due to the continuity of the light output. According to the different needs of different industries, the equipment can meet the needs of users in different industries, such as advertisment letters, metal plate, cabinet, shelf, door, window, elevator, Washing Basin, etc. many metal products industries.
Technical parameters:
NO | Technical Parameter | |
Machine model | SL-WF 1000W | SL-WF 1500W |
Laser power | 1000W | 1500W |
Laser wavelength | 1080±3nm | 1080±3nm |
Beam quality | M2＜1.2 | M2＜1.2 |
Welding thickness | ≤ 2mm stainless steel | ≤ 3mm stainless steel |
Welding gap penetration | ＜0.2mm | ＜0.2mm |
Penetration | ≤ 2mm | ≤ 2mm |
Fiber length | 10M | 10M |
Welding head | Auto wire feeder Welding head | |
Power consumption | ≤ 5KW | ≤ 6 KW |
Water cooling | Customized industrial double temperature water cooling system | |
Power supply | 220V + 10% 3P + PE | |
Working temperature | 0-35 degree | |
Working humidity | 70% | |
Machine packing | Standard export wooden packing | |
Hand held 1000W 1500W fiber laser welding machine with Hand held welding machine
