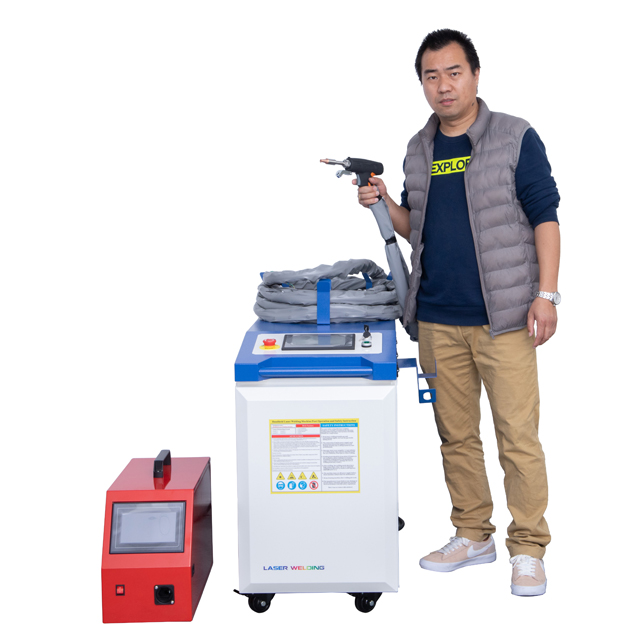

Hand Held 1500W 2000W Laser Wire Welding Machine
Laser Source: Max / Raycus / bwt Brand: Speedy Laser Model : SL-WF 1500W / 2000W HS Code: 8515809090
Brief Information: Laser Power : 150watt / 2000watt Cooling : Water Cooling Machine weight : 140 KG Delivery time: 5-7 days after payment Global Shipping: Ship by Sea
Air cooling hand held laser welding machine is a high-end new type of welding method. The laser beam is coupled to the fiber, and after being transmitted over a long distance, it is processed into parallel light. Focusing on the workpiece to carry out continuous welding, the welding effect is stronger and the weld seam is more fine and beautiful due to the continuity of the light output. According to the different needs of different industries, the equipment can meet the needs of users in different industries, such as advertisment letters, metal plate, cabinet, shelf, door, window, elevator, Washing Basin, etc. many metal products industries.
Nanjing Speedy Laser Hand Held 1500W 2000W Laser Wire Welding Machine
Recovery volume
ABOUT SPEEDY LASER
R&D TEAM
Nanjing Speedy Laser have strong laser engineer, we research many new laser application every year.
COMPANY PROFILE
Nanjing Speedy Laser Technology Co.,Ltd. professional laser machine manufacturer in China over 16 years. Our products including laser marking machine, laser cutting machine, laser welding machine and other industrial laser processing equipment.
ONE TOP SERVICE
Nanjing Speedy Laser always believe SERVICE important in machinery, not only seel machine but also sell service.
INDUSTRY SOLUTIONS
Nanjing Speedy Laser provide full sets laser machine solutions ( Marking, Welding, Cleaning, Cutting ), especially customized laser machine.
GLOBAL MARKET
Nanjing Speedy Laser attend different Exhibiiton such as Shanghai, Guangzhou, Germany, USA, Thailand etc.
OUR PARTNERS
Nanjing Speedy Laser keep good relation with our customer and suppliers, IPG, Raycus, MAX, JCZ, SinoGalvo, Wavelength etc.
PRODUCTS ON SCALE
Nanjing Speedy Laser have own 2000 Square meter factory, more then 30 people production about 1,000 sets machine every year.
GLOBAL CUSTOMERS
Nanjing Speedy Laser export machine to many Europe countries, USA, Canada, Chile, Brazil, Malaysia,Thailand etc.
Nanjing Speedy Laser have strong laser engineer, we research many new laser application every year.
COMPANY PROFILE
Nanjing Speedy Laser Technology Co.,Ltd. professional laser machine manufacturer in China over 16 years. Our products including laser marking machine, laser cutting machine, laser welding machine and other industrial laser processing equipment.
ONE TOP SERVICE
Nanjing Speedy Laser always believe SERVICE important in machinery, not only seel machine but also sell service.
INDUSTRY SOLUTIONS
Nanjing Speedy Laser provide full sets laser machine solutions ( Marking, Welding, Cleaning, Cutting ), especially customized laser machine.
GLOBAL MARKET
Nanjing Speedy Laser attend different Exhibiiton such as Shanghai, Guangzhou, Germany, USA, Thailand etc.
OUR PARTNERS
Nanjing Speedy Laser keep good relation with our customer and suppliers, IPG, Raycus, MAX, JCZ, SinoGalvo, Wavelength etc.
PRODUCTS ON SCALE
Nanjing Speedy Laser have own 2000 Square meter factory, more then 30 people production about 1,000 sets machine every year.
GLOBAL CUSTOMERS
Nanjing Speedy Laser export machine to many Europe countries, USA, Canada, Chile, Brazil, Malaysia,Thailand etc.
Laser welding beyond a doubt is the most flexible and simple means of direct part identification or serialization available today. The ability to mark on a host of different materials by simply changing various parameters, offers an unsurpassed control, flexibility, quality and speed versus other types of welding methods.
SPEEDY LASERAdvanced Technologies laser marking machine,Laser welding machine,Laser cutting machine, laser cleaning machine.available with an average power from 3W-30000W with perfect laser beam,motion integrated controls,free maintenance.
Laser welding machine flexible and convenient, high welding speed.with longer welding distance, it can welding big metal objects and can be used when automatic welding cannot be performed when the workpiece size is not uniform.
It is mainly used for large workpieces and fixed positions such as inner right angles, outer right angles, and flat seam welding. The heat affected area during welding is small, the deformation is small, and the welding depth is large and the welding is firm.
Laser Power 1500W / 2000W / 3000W with auto wire feeder.Support 0.8mm 1.0mm 1.2mm 1.6mm wire.
1500W fiber laser source, the laser life 50,000 free maintenance.
Hand-held holding welding head is easily operated ,picking and moving.
Using special welding software .it has function of continuous laser beam ,and the adjustable output waveform,which can assure the precious and high-speed welding
1500W maximum welding 3-4mm stainless steel.
Core Accessories Analysis

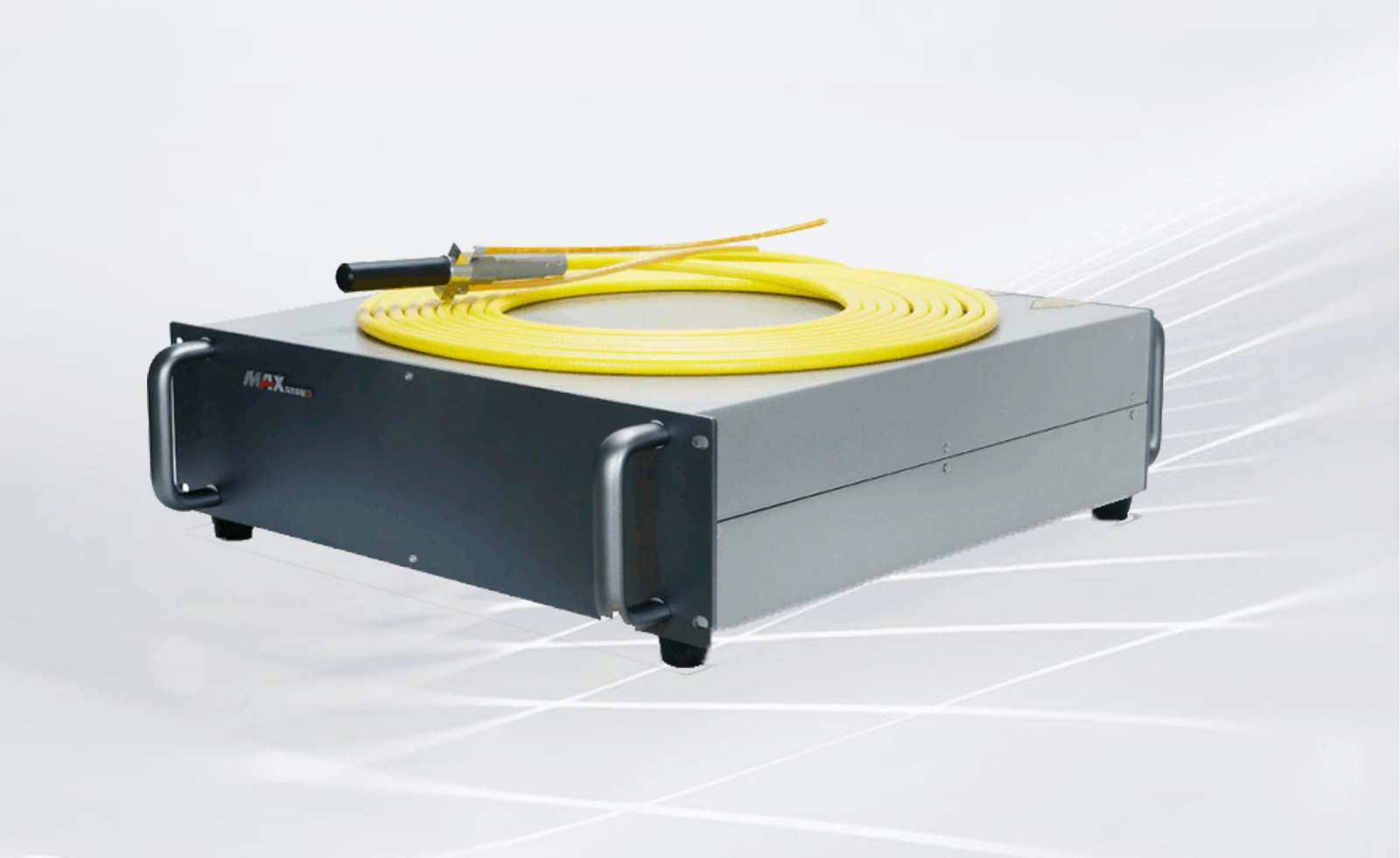

Laser Source
Max or Raycus 1500watt or 2000watt CW laser source.Excellent beam quality, the laser beam can be focused close to the diffraction limit to achieve precision processing; it has continuous and two working modes of modulated pulse can be selected, which greatly reduces the heat-affected zone of processing; reliable performance.
Welding gun
SUP21T Welding gun Integrated design, compact and convenient, weighing only 0.7Kg. The focusing Lens and protective mirror are drawer-type for easy replacement. The collimating mirror is integrated with the QBH for easy on-site replacement. Welding, Cleaning, Cutting function.
Wire feeder
New design, technology upgrade, supports direct welding wire 0.8mm 1.0mm 1.2mm 1.6mm, pulse wire feeding mode, manual and automatic wire feeding, wire feeding speed 15-600cm/min.
Samples Show
FAQ
Q: Whats advantage Hand Held Laser Welding ?
A:Laser Compare tradition Argon welding, Laser welding speed much fast welding.Flexible and convenient, with longer welding distance, it can overcome the limitations of workbench space and can be used when automatic welding cannot be performed when the workpiece size is not uniform. It is mainly used for large workpieces and fixed positions such as inner right angles, outer right angles, and flat seam welding. The heat affected area during welding is small, the deformation is small, and the welding depth is large and the welding is firm.
Q: How choose Laser Power Welding ?
A:At Present Laser welding power 1500W, 2000W and 3000W. 1500W can welding through 3mm stainless steel / mild steel, 2000W can welding 4-5mm stainless steel / mild steel, 3000W can welding 6-8mm stainless steel / mild steel, so customer need check how much metal sheet welding then choose correct Power welding.
Q: How Trust Speedy Laser ?
A:SPEEDY LASER always suppoed do buisness together should trust each other, business long time cooperation we focus on Long term cooperation,old customer very important for company life.So we keep very honesty to all customer. Of course we never cheating customer.
Q: How Place Order with Speedy Laser ?
A: Laser Machine very sensitive materials we should know clients details requremets,such as what is material welding ? How much metal welding thickness? After we know these information our seller will suggest correct machine and send Offer, Customer pay by bank we ship machine out.
