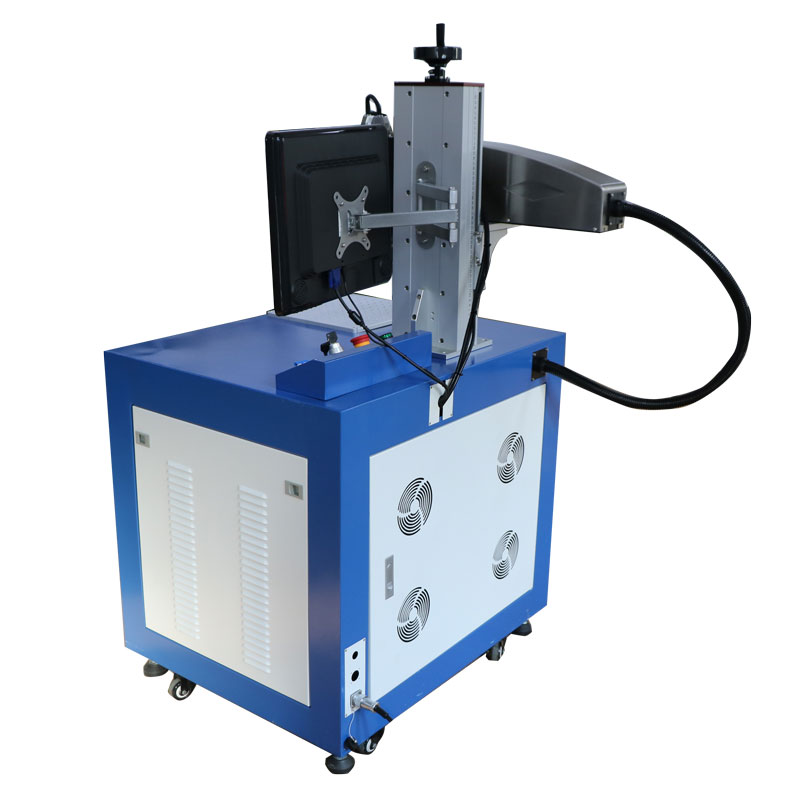

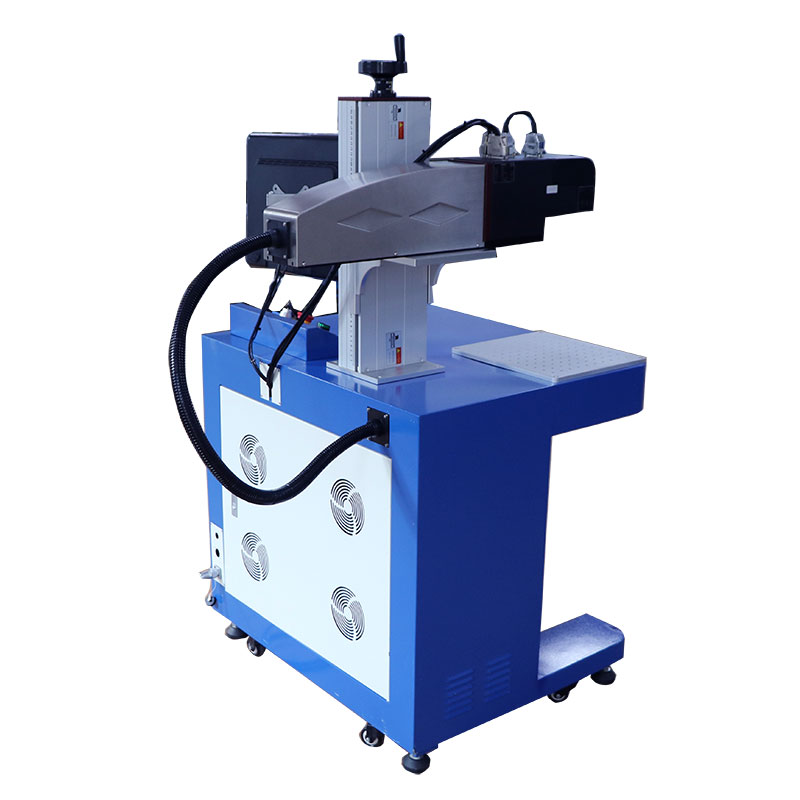

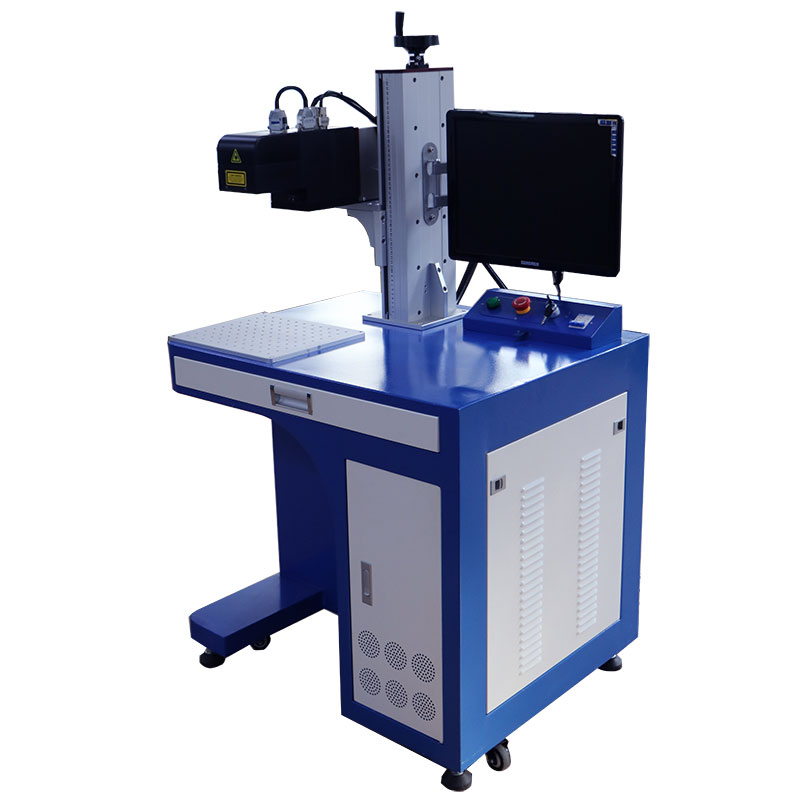

3D Dynamic fiber laser marking machine

3D fiber laser marking machine adopt imported core components, with high-speed, high precision 3D galvo, and with our 3D specified software and control system, it can engrave on any curved work pieces in a fine process, there is no off-focus problem. It can also adjust focus length any time.
  • SL-FD 50W
  • Speedy Laser
  • 8456110090
Laser Power:
Quantity:

 China fiber laser engraving machine 30W 50W fiber laser engraver machine China

Product Description:

1).Subvert traditional 2D marking mode. It can engrave many different 3D shapes, for example:slope,cylinder,cone,ball,and so on.

2). Amazing huge central angle marking .The max central angle can be reach 117 degree on cylinder.

3). Perfectly present target graphics on work pieces,avoid deforming such as elongation, slope.

4). The border won’t be “ignored”. Everywhere is marked uniformly

5). Details show ingenuity, no matter observing from any angles, it is exquisite,perfect.

6). Simple and easy is better!The software fully developed by ourselves, it is easy to learn and use.

50W 3D fiber laser engraver machine Video on Youtube:


Technical Parameters:
      Item Name                             Technical Parameter
      Model                              SL-FD 50W               SL-FD 60W
      Laser Power                                50W                 60 W
      Laser wavelength                                1064nm
      Laser type                                Raycus / JPT / IPG laser source

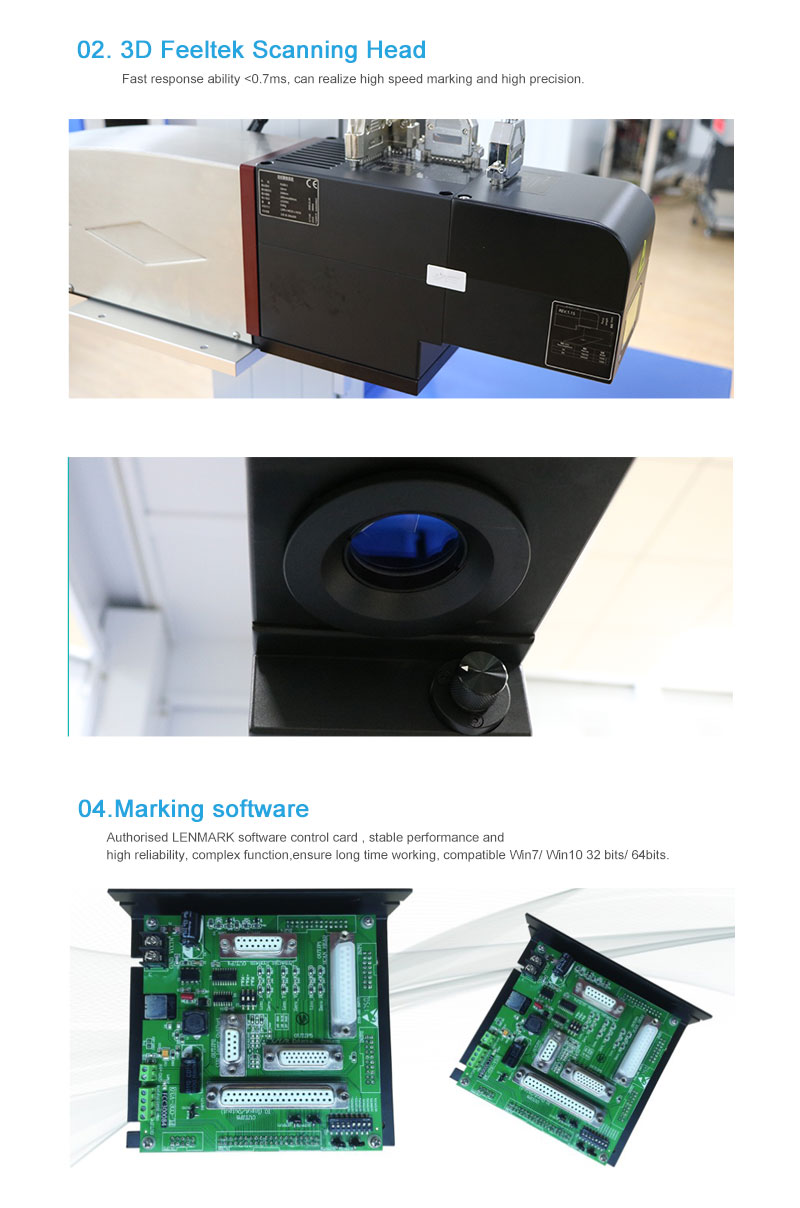

      3D Galvo scanner                               Feeltek 3D Galvo scanner
      Repeat frequency                               30-60KHz
     Marking speed                               ≤ 6000mm/s
     Marking depth                              0.01-0.5mm
     Marking area                              110*110mm
     Power consumption                             800W                 1000W
    Operating voltage                            110V- 240V/50-60 Hz/15A
    Cooling                            Air Cooling
    Packing size                            88*73*108cm (L*W*H)
    Gross weight                           150 KG
    Package                           Standard export wooden case

  Raycus JPT 30W 50W 100W 3D fiber laser marking machine

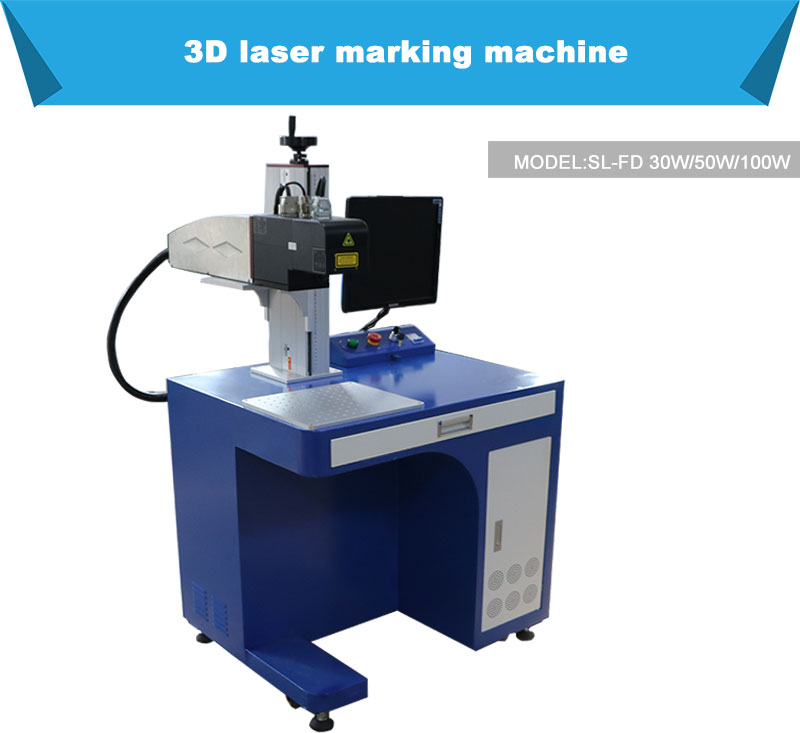

3d laser marking machine

 Desktop 3D 30W 50W 100W fiber laser marking engraving machine

3d fiber laser marking50W 3d laser

Desktop 3D 30W 50W 100W fiber laser marking engraving machine

Desktop 3D 30W 50W 100W fiber laser marking engraving machine

Desktop fiber laser engraving machine wide range application, mainly for all kinds of metal and most plastic. Especially

suitable for hardware tools, kitchenware knifes, plastic seals products, metal jewelry, label, integrate circuits, frames,

 plumbing fittings and other products marking.

3d fiber laser marker
