Selecting a fiber laser marking machine is rarely a simple procurement task. Underspecifying power quickly leads to severe production bottlenecks. Conversely, over-specifying wastes capital and can damage delicate components during the marking process. You need the right tool for the exact material and production speed.
For manufacturers and OEM integrators, the wrong machine choice heavily impacts cycle times. It also complicates strict part traceability compliance and disrupts downstream automation integration. Your production lines require precise precision, speed, and reliability. We provide a pragmatic, engineering-led framework here to help you navigate these choices.
In this guide, you will learn how to evaluate wattage, laser sources, and physical form factors. We will help you match these technical specifications exactly to your specific industrial production environments. By following these steps, you can secure optimal throughput and ensure long-term equipment reliability.
Output power (20W–100W) should be dictated by required mark depth and cycle time, not just budget.
Standard Q-switched lasers handle 80% of routine metal marking, while MOPA sources are necessary for high-contrast plastics and color marking on metals.
Environmental factors (safety regulations, line speed, space) dictate whether a desktop, fully enclosed, or inline OEM integration is required.
System integration must account for fume extraction, lens variations (working area), and automation software compatibility.
We must establish clear parameters before you evaluate hardware. A metal laser marking machine interacts very differently with various industrial alloys. Stainless steel, aluminum, titanium, and brass all possess unique thermal conductivities. This specific thermal conductivity directly dictates your required energy density.
You also need to understand the difference between surface contrast and deep engraving. Surface annealing creates a highly visible dark mark on medical devices. It requires precise thermal control to avoid altering the metal's underlying surface structure. In contrast, deep engraving requires high material removal rates. You need aggressive material removal for durable VIN numbers and heavy-duty tracking codes.
Let us frame the entire decision around throughput. A higher wattage laser does not necessarily mark "better" than a lower wattage unit. Instead, it simply removes material much faster. This rapid removal reduces the overall cycle time per part. If you run high-volume lines, seconds matter.
Finally, establish your compliance and traceability rules early. You must define your strict requirements for UID, 2D data matrix codes, and barcode grading standards. Define these data requirements before you finalize any hardware selection.
Material Type | Common Application | Preferred Marking Method | Power Requirement |
|---|---|---|---|
Stainless Steel | Medical tools, bearings | Surface Annealing (Dark Mark) | Low to Medium (20W - 30W) |
Anodized Aluminum | Electronics, aerospace parts | Ablation (Stripping coating) | Medium (30W) |
Bare Aluminum / Brass | Engine blocks, custom tags | Deep Engraving | High (50W+) |
Engineered Plastics | Automotive switches, relays | Color Change / Foaming | Low (20W MOPA preferred) |
Best Practice: Always request sample marks on your actual production materials. Do not rely on generic vendor samples.
Common Mistake: Assuming all metals absorb laser energy equally. Reflective metals like brass reject low-power beams.
Choosing the right power level is critical for your production efficiency. We can easily break down the common wattages into distinct industrial roles.
A 20W fiber laser marker works best for dedicated surface marking. It excels at high-contrast annealing and low-volume production runs. However, it carries specific limitations. It is far too slow for efficient deep engraving. It also struggles heavily to mark highly reflective metals at high speeds.

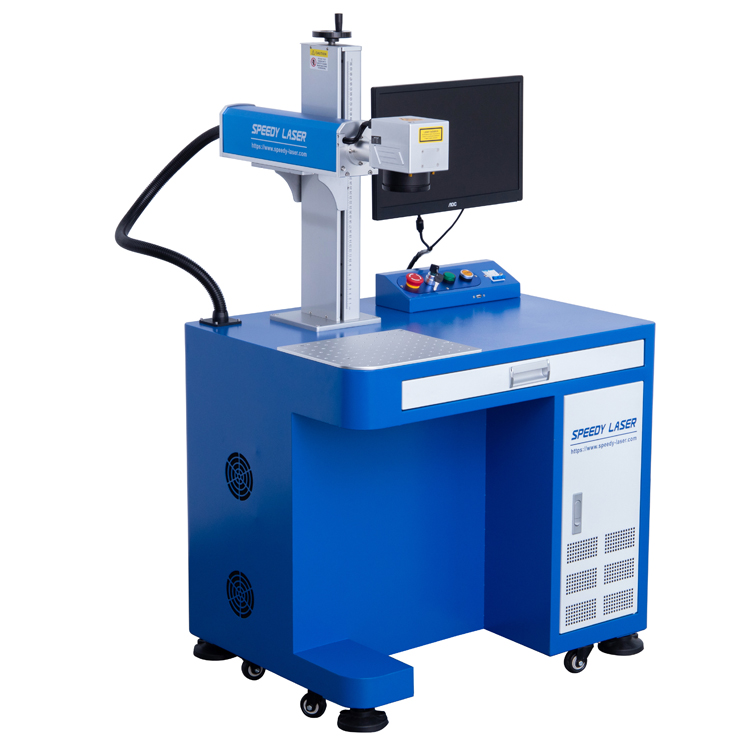

This is the ideal middle ground for general part marking. A 30W system offers a 30% to 40% speed increase over 20W setups. It handles moderate engraving depths easily and consistently. You get an excellent balance of speed and affordability. Most job shops consider this their primary workhorse.

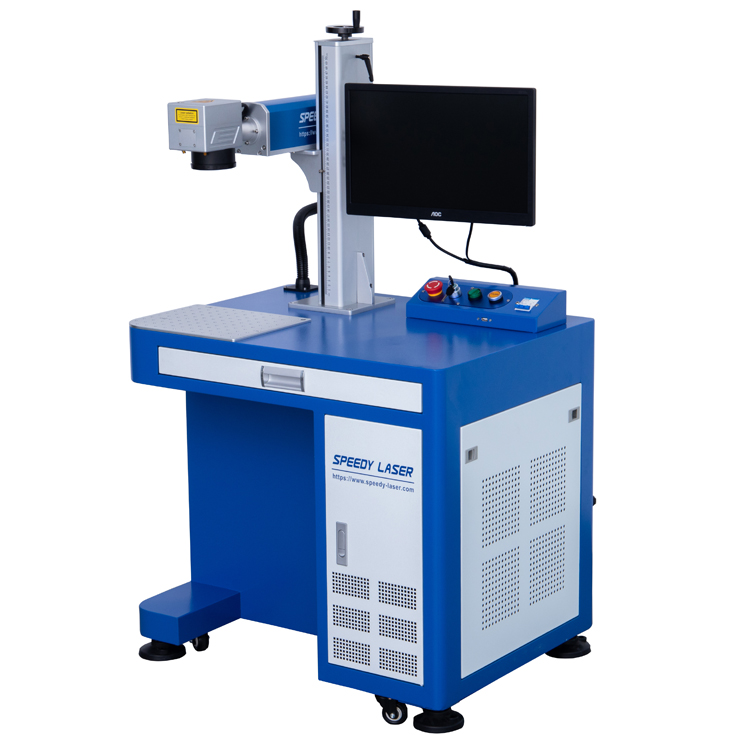

A 50W fiber laser engraver delivers ultra high-speed cycle times. It handles deep engraving and mark-on-the-fly inline applications perfectly. But you must watch out for structural caveats. You risk serious thermal warping on thin substrates. You also strictly need robust fume extraction. Remember, higher power does not guarantee finer resolution.
Choose 20W if your cycle time exceeds 10 seconds per small part.
Choose 30W for standard traceability codes on mixed metal batches.
Choose 50W+ when cycle times must remain under 2 seconds.
Choose 50W+ if you need deep, post-process durable engraving (like pre-powder coat marking).
You must choose carefully between standard Q-Switched and MOPA laser sources. They serve vastly different material needs. Understanding this difference prevents costly procurement errors.
Brands like Raycus and Maxphotonics commonly produce standard Q-Switched sources. They operate using a fixed pulse width. These units are highly reliable and extremely cost-effective. You should use them for standard bare metal engraving tasks. They also handle basic industrial plastics quite well.
MOPA technology is structurally different and highly versatile. It features variable pulse width and precise frequency adjustment. A standard laser might have a fixed 120-nanosecond pulse. A MOPA laser can drop down to 2 nanoseconds or extend up to 500 nanoseconds. This broad control dictates how heat enters the material.
A JPT fiber laser marker utilizing MOPA technology unlocks advanced industrial capabilities. It allows for rich "black marking" on anodized aluminum. It creates high-contrast marks on sensitive engineered plastics without melting them. It even produces distinct color marking on stainless steel by precisely controlling the oxidation layer.
How do you justify the premium MOPA price tag? You should only specify MOPA if you face strict quality control rules. If material sensitivity or aesthetic contrast is absolutely mandatory, MOPA is worth the investment. If you simply need a readable serial number on a steel bracket, a Q-Switched source is perfectly sufficient.
Environmental factors heavily dictate your machine's physical footprint. You must meticulously evaluate local safety regulations, available factory space, and future automation goals.
A desktop fiber laser marking system uses an open-galvo setup. It features a minimal, desk-friendly footprint. These systems fit perfectly in specialized job shops and R&D labs. They work incredibly well for manual, low-volume loading scenarios.
Please note the safety rules carefully. These are typically Class 4 laser safety devices. The beam is openly exposed. They require strict operator PPE (safety glasses) and established isolation protocols.
These robust systems feature Class 1 safety enclosures. The laser cannot fire if the cabinet door remains open. They often include an automated Z-axis and motorized rotary attachments. You use them for high-volume batch processing. They allow completely safe deployment directly on active factory floors without specialized laser safety rooms.
These are streamlined, head-only units. Engineers design them specifically to communicate directly with PLCs. They utilize industrial protocols over PROFINET or EtherCAT. You use them for fast conveyor-belt "mark-on-the-fly" setups.
You must carefully calculate your line speed against the available marking window. If the conveyor moves too quickly, the mark will stretch or fail to complete.
Form Factor | Safety Class | Ideal Environment | Automation Level |
|---|---|---|---|
Desktop Open | Class 4 | R&D, Small Job Shops | Manual Load/Unload |
Fully Enclosed | Class 1 | Open Factory Floors | Semi-Automated (Z-axis) |
OEM / Inline | Class 4 (until integrated) | Conveyor Systems | Fully Automated (PLC) |
We often see corporate buyers overlook critical implementation factors. Pay close attention to these hardware and environmental details to avoid delayed, frustrating deployments.
Lens Selection (F-Theta Lenses): A larger working area reduces your beam density. For example, a 300x300mm lens spreads the laser energy significantly. A 20W laser using this large lens may fail to engrave metal entirely. The spot size becomes too large. You must match the lens strictly to your maximum part size. Do not oversize the lens unnecessarily.
Software & PLC Compatibility: You must decide between proprietary and open software platforms. Will you use EZCAD2, EZCAD3, or custom enterprise solutions? You must verify dynamic barcode generation capabilities. Ensure smooth ERP database integration before authorizing any purchase.
Fume Extraction Requirements: Lasers instantly vaporize metal and plastic. These airborne particulates create serious respiratory hazards for operators. They also quickly damage the sensitive laser lens. Your initial capital expenditure must include industrial-grade HEPA filtration systems.
IP Ratings: Standard desktop units will fail quickly in dusty or oily environments. Airborne oil mist destroys internal optics. You must verify IP54 or IP65 ratings for OEM heads. This protection is essential when placing lasers in harsh manufacturing cells or CNC environments.
Choosing a fiber laser marking machine requires a highly structured, logical approach. Follow this proven shortlisting logic. First, start with your material and required cycle time to define the exact wattage. Next, choose the internal laser source based on your specific contrast requirements. Decide clearly between standard Q-Switched and MOPA technologies. Finally, select the physical form factor based on your facility's automation architecture and safety standards.
Take these action-oriented next steps to finalize your procurement process:
Request a sample application test directly from the manufacturer.
Send your actual, uncoated production materials to the vendor for testing.
Demand an unedited video of the marking process displaying recorded cycle times.
Verify the recommended wattage perfectly matches your projected throughput needs.
A: The primary difference is processing speed and material removal rate. A 50W machine can achieve deep engraving much faster than a 20W machine, making it better suited for high-volume manufacturing lines.
A: Yes, but it depends on the plastic's composition. Engineered plastics like ABS and PEEK mark well, especially with a MOPA source. However, transparent plastics and certain polymers are better suited for UV or CO2 lasers.
A: Most require a connected PC via USB or Ethernet to run control software (like EZCAD), though some modern industrial controllers offer standalone touch-screen interfaces.
A: Fiber lasers are virtually maintenance-free as they have no consumable gases or mirrors to align. Primary maintenance involves keeping the F-Theta lens clean and replacing fume extractor filters.
