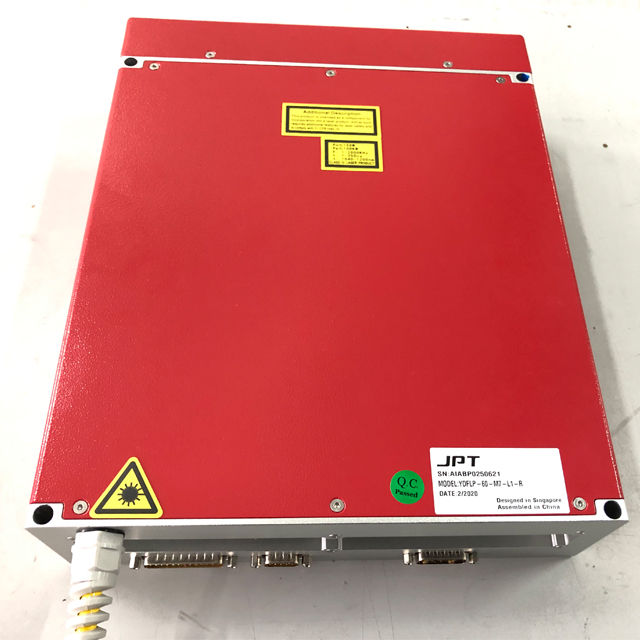

JPT Q-Switch 20W 30W 50W 60W fiber laser source / JPT fiber laser marking machine
Product Description:
JPT LP series pulsed fiber lasers make use of master oscillator power amplifier (MOPA) configuration and show excellent laser performance as well as high level of temporal pulse shaping controllability. Compared with Q-switching technology, LP series has greater flexibility,wider frequency range, higher control precision and superior first pulse.
Product Description:
Model & Technical Parameter | |||||
Model | YDFLP-E-20-LP-S | YDFLP-E-30-LP-S | YDFLP-E-50-LP-L | ||
M2 | <1.5 | <1.5 | <1.8 | ||
Cable Length | 2m | 2m | 3m | ||
Output Power | > 20W | > 30W | > 50W | ||
Pulse Energy | 0.8 mJ | 0.8 mJ | 1.25 mJ | ||
Pulse Range | 25-600KHZ | 37-600KHZ | 40-600KHZ | ||
Pulse Duration | 200ns | 200ns | 200ns | ||
Output Power Stability | < 5% | < 5% | < 5% | ||
Cooling | Air Cooling | Air Cooling | Air Cooling | ||
Supply DC Voltage | 24V(DC) | 24V(DC) | 24V(DC) | ||
SupplyCurrent | > 5A | > 7A | > 10A | ||
Power Consumption | < 110W | < 150W | < 220W | ||
Wavelength | 1064nm | 1064nm | 1064nm | ||
Emission Bandwidth@3dB | <15nm | < 15nm | <15nm | ||
Polarization | Random | Random | Random | ||
Output Beam Diameter | 7±0.5nm | 7±0.5nm | 7±0.5nm | ||
Output Power Tuning Range | 0 ~ 100% | 0 ~ 100% | 0 ~ 100% | ||
Operation Temperature | 0 ~ 40℃ | 0 ~ 40℃ | 0 ~ 40℃ | ||
Storage Temperature | -10 ~ 60 ℃ | -10 ~ 60 ℃ | -10 ~ 60 ℃ | ||
N.W | 3.75KG | 4.25KG | 8.2KG | ||
Size(L×W×H) | 245 × 200 × 65mm | 245 × 200 × 65mm | 580×400×140mm |
