Brief Information: Laser Power : MOPA 30Watt / 60Watt Marking Length: 600mm Ruler ( If long can Customzied ) Marking Software: PowerMark Delivery time: 30-40 days after payment Global Shipping: By Sea

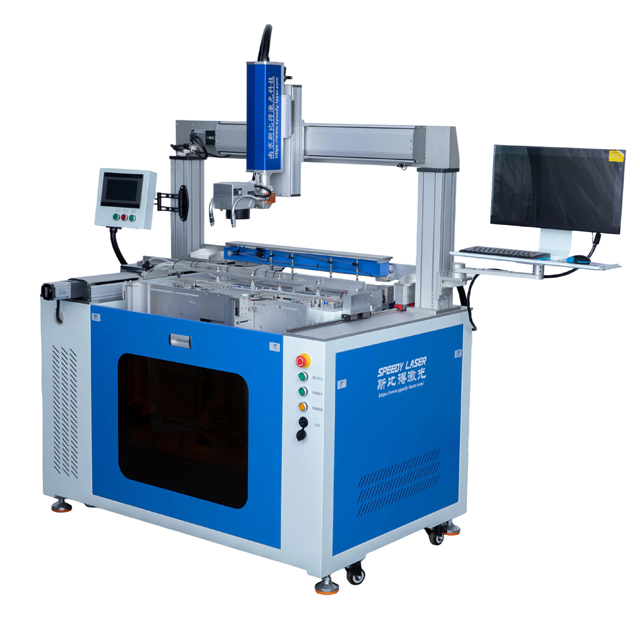

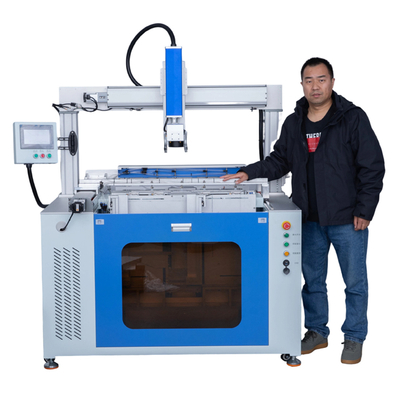

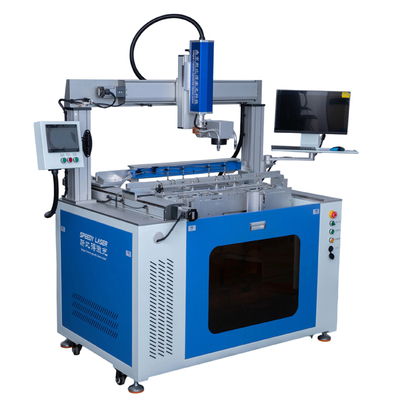

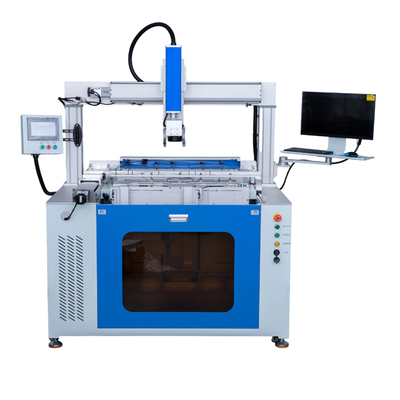

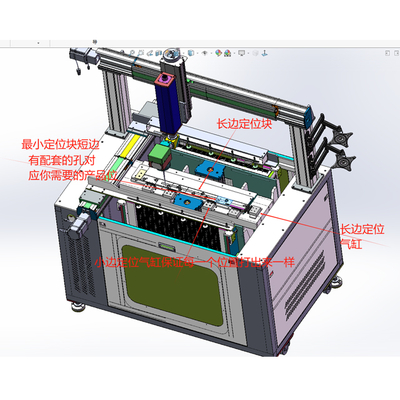

This machine design and customized for a Measure Steel Ruler Tools factory. Customer traditionly use Chemical etching make ruler.Chemical etching primarily use chemical reactions to engrave graduations on the surface of steel ruler. design pattern scale and then a special etching adhesive or cleaving treatment use to cover parts of the surface.The steel ruler is then immersed in an etching solution for a period of time, allowing the etchant to dissolve the uncovered areas and form the graduations. The ruler is then removed from the etching solution,rinsed thoroughly with water, and then subjected to surface treatment and coating.With China's environmental protection requirements, this process will be phased out by the market. Our company designs and manufactures automated laser marking systems for steel rulers, with automatic loading and unloading,significantly improving our customers' process and production efficiency.
Nanjing Speedy Laser have strong laser engineer, we research many new laser application every year.
COMPANY PROFILE
Nanjing Speedy Laser Technology Co.,Ltd. professional laser machine manufacturer in China over 16 years. Our products including laser marking machine, laser cutting machine, laser welding machine and other industrial laser processing equipment.
ONE TOP SERVICE
Nanjing Speedy Laser always believe SERVICE important in machinery, not only seel machine but also sell service.
INDUSTRY SOLUTIONS
Nanjing Speedy Laser provide full sets laser machine solutions ( Marking, Welding, Cleaning, Cutting ), especially customized laser machine.
GLOBAL MARKET
Nanjing Speedy Laser attend different Exhibiiton such as Shanghai, Guangzhou, Germany, USA, Thailand etc.
OUR PARTNERS
Nanjing Speedy Laser keep good relation with our customer and suppliers, IPG, Raycus, MAX, JCZ, SinoGalvo, Wavelength etc.
PRODUCTS ON SCALE
Nanjing Speedy Laser have own 2000 Square meter factory, more then 30 people production about 1,000 sets machine every year.
GLOBAL CUSTOMERS
Nanjing Speedy Laser export machine to many Europe countries, USA, Canada, Chile, Brazil, Malaysia,Thailand etc.
Nanjing Speedy Laser have strong laser engineer, we research many new laser application every year.
COMPANY PROFILE
Nanjing Speedy Laser Technology Co.,Ltd. professional laser machine manufacturer in China over 16 years. Our products including laser marking machine, laser cutting machine, laser welding machine and other industrial laser processing equipment.
ONE TOP SERVICE
Nanjing Speedy Laser always believe SERVICE important in machinery, not only seel machine but also sell service.
INDUSTRY SOLUTIONS
Nanjing Speedy Laser provide full sets laser machine solutions ( Marking, Welding, Cleaning, Cutting ), especially customized laser machine.
GLOBAL MARKET
Nanjing Speedy Laser attend different Exhibiiton such as Shanghai, Guangzhou, Germany, USA, Thailand etc.
OUR PARTNERS
Nanjing Speedy Laser keep good relation with our customer and suppliers, IPG, Raycus, MAX, JCZ, SinoGalvo, Wavelength etc.
PRODUCTS ON SCALE
Nanjing Speedy Laser have own 2000 Square meter factory, more then 30 people production about 1,000 sets machine every year.
GLOBAL CUSTOMERS
Nanjing Speedy Laser export machine to many Europe countries, USA, Canada, Chile, Brazil, Malaysia,Thailand etc.
Laser marking beyond a doubt is the most flexible and simple means of direct part identification or serialization available today. The ability to mark on a host of different materials by simply changing various parameters, offers an unsurpassed control, flexibility, quality and speed versus other types of marking methods.
SPEEDY LASERAdvanced Technologies fiber laser ,UV laser,CO2 laser,Diode end pump laser marking systems are available with an average power from 3W-200W with perfect laser beam,motion integrated controls,free maintenance.
Laser marking machine application engraving different type materials (Metal, wood, plastic, brass, aluminum, gold, silver etc). Permanent marking never remove even many years pass.
Laser marking non-contact processing.Simple operation and low maintenance cost. Fast marking speed and efficient.High engraving precision.
Laser marking machine can marking serial number, TEXT, logos, barcode, QR code high-resolution finish. Low power consumption.
Item Name
Technical Parameter
Machine Model
SL- 30W
SL- 60W
Laser power
30W
60W
Laser Wavelength
1064nm
1064nm
Laser type
MOPA LASER
MOPA LASER
Marking speed
≤ 4000mm/s
≤ 4000mm/s
Frequency
1-4000KHZ
1-4000khz
Pulse width
2-500ns
2-500ns
Marking deep
0.1-0.3 mm
0.1-1mm
Rated power
500W
1000W
Marking area
170×170mm
Voltage Operating
110V- 240V/50-60 Hz/15A
Cooling
Air Cooling
Packing size
about 150*130*180cm (L*W*H)
Gross weight
about 350 KG
Fiber Laser Marking Machine
Desktop Fiber Laser Marking Machine for metal machine leaves an actual mark on stainless steel and other metals. It results in ablation of the material on laser marking stainless steel parts. The material vaporizes and changes the color where the fiber laser etching occurs.
Laser Power 20Watt / 30Watt / 50Watt / 60Watt / 100Watt. Marking all metal & some plastic.
UV Laser Marking
Laser Power 3Watt / 5Watt /10Watt. Air & Water cooling,High laser processing Marking all plastic products.
CO2 Laser Marking
Laser Power 30Watt / 60Watt /100Watt /150Watt. Air & Water cooling, Marking non metal Wood leather.
Diode Laser Marking
Laser Power 10Watt / 20Watt/. Air & Water cooling, Marking Auto plastic components,high precise engraving.
Core Accessories Analysis
Laser Source
China JPT MOPA LASER JPT M7 Series is a high-power fiber laser adopting the Master Oscillator Power Amplifier (MOPA) configuration with a directly electrically modulated semiconductor laser seed source. It delivers exceptional beam characteristics and precise pulse shaping control.Compared to Q-switched fiber lasers, MOPA fiber lasers allow independent control of pulse frequency and pulse width. By adjusting these two key laser parameters, they achieve consistent high peak power output and broader compatibility with various marking substrates.Moreover, MOPA technology makes possible what Q-switched lasers cannot—higher output power, giving it a distinct advantage in high-speed marking applications.

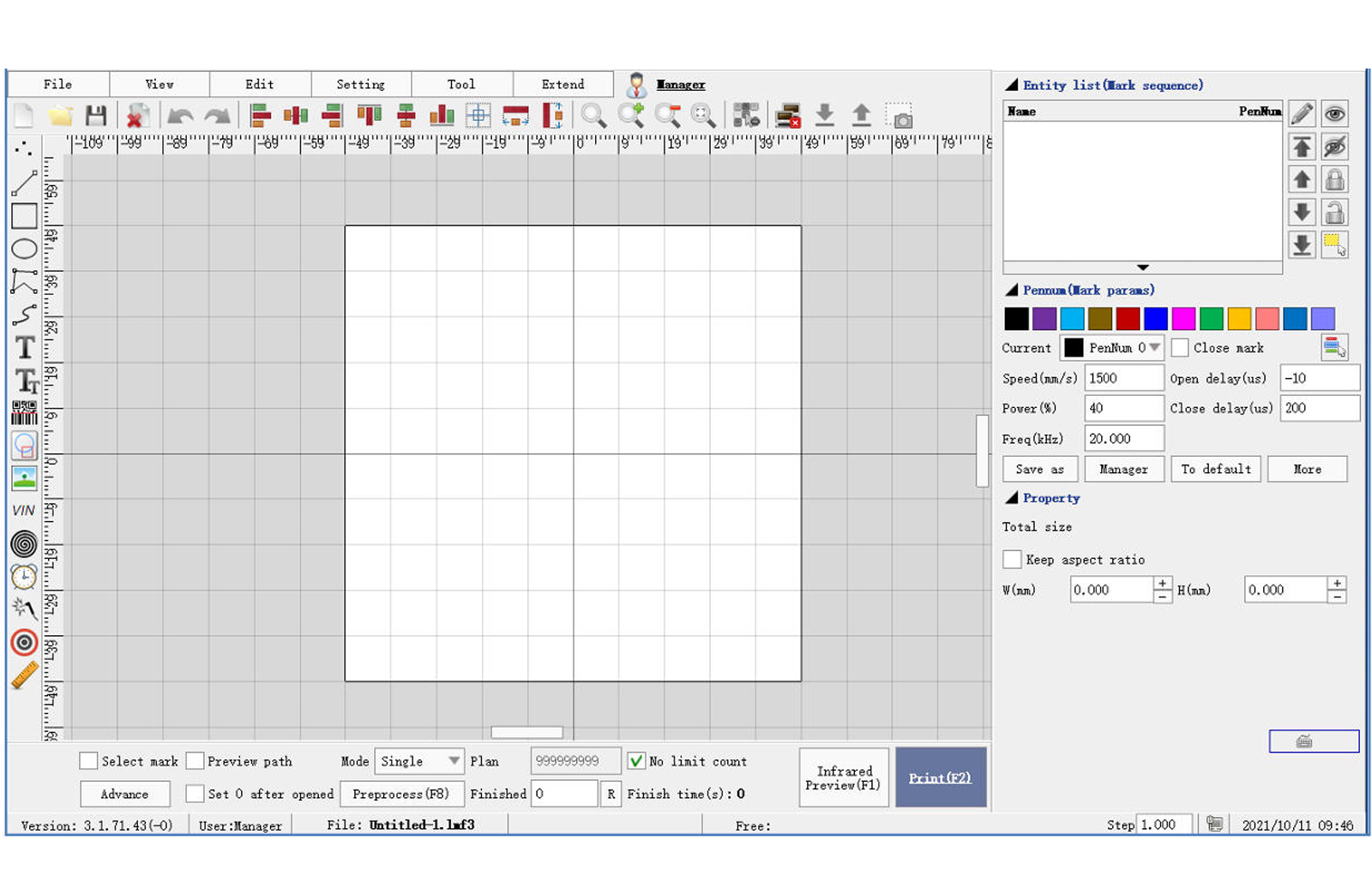

Marking Software
Marking software program PowerMark specially for flying marking.

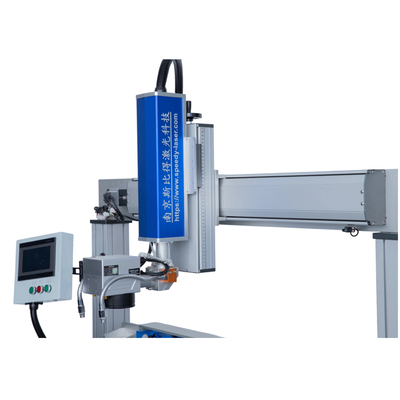

Galvo Scanner
Equip Sino Galvo SG7110 or Shenzhen Ouya M102 Model.China mostly top brands Galvo scanner suppliers.Double red poiner easy find focus,standard incident spot diameter is 10mm. The galvanometer system has the characteristics of zero drift,fast speed,small size,low temperature and stable and reliable operation.
Samples Show
FAQs
Q: Why buy Desktop SL-FC Series Model Laser marking ?
A:Actually we have different model laser marking machine.If you are factory and can afford ship by air or can wait ship by Sea,we suggest consider buy this model machine, this model we install PC / Display/ marking software already, customer only connect plug with power supply and can use machine.Also the machine table have much space for marking products stock. China market we sell this model machine mostly, especially factory buy this model machine.
Q: Speedy Laser Factory or Trading Company ?
A:SPEEDY LASER director Mr Gary Hou working Laser more then 20 years, 2013 Year Build Speedy Laser Company. We are real High technology laser machine factory in Nanjing City, Have Own 2000 square meter workspace.Welcome global customer visit,Our products include Laser Marking,Laser welding,Laser Cleaning and Metal sheet Laser Cutting.At present 30 people working Speedy Laser.
Q: How Place Order with Speedy Laser ?
A:Laser Machine very sensitive materials we should know clients details requremets,such as what is material marking ? How much marking deep? How about marking result ? After we know these information our seller will suggest correct machine and send Offer, Customer pay by bank we ship machine out.
Q: Machine Warranty ?
A: Standard Laser marking machine 1 Year Warranty. Even machine out of Warranty if small machine parts broken we also can provide free spare parts or free repair.
