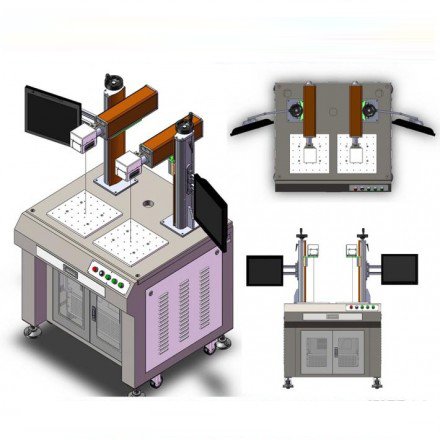

double head fiber laser marking machine

fiber laser marking machine,the best & cheap solutions marking all of metal and plastic materials.High marking precision,Free maintenance,the laser source life 100000 hours.All of machine give customer 2 years warranty.

  • SL-FM 20W/30W/50W

  • Speedy Laser

  • 8456110090

Availability:
Quantity:
Inquire Add to Basket

Product Description:
• High quality beam, consumable free, small machine dimension.
• Fiber laser source, without any adjustment collimating optical element.
• Smaller output laser beam ,fine marking line. Suitable high precision marking.
• Using environment is liberal, Long life, laser generator life over 100,000 hours.

Application:
Fiber laser marking machine wide range application, mainly for all kinds of metal and most plastic. Especially suitable for hardware tools, kitchenware knifes, plastic seals products, metal jewelry, label, integrate circuits, frames, plumbing fittings and other products marking.

Technical Parameter:
  Item Name
Technical Parameters
  Model
       SL-FM 20W
     SL-FM 30W        SL-FM 50W
  Laser Power      20W   30W     50W
  Laser wavelength    1064nm
  Laser type               Chin Raycus /JPT / Germany IPG fiber laser
  Beam diameter   7mm±1
  Repeat frequency                       20KHz-80KHz     50KHz-100KHz
  Pulse width                           131ns            135ns
  Marking depth  0.01-0.5mm
  Marking area               70×70mm/110×110mm/175×175mm
  Power consumption   500W    800W           1.2 KW
  Operating voltage                   110V- 240V/50-60 Hz/15A
  Cooling        Air Cooling
  Packing size             89*43*86cm (L*W*H)
  Gross weight          70 KG
  Package                  Standard export wooden case

fiber laser marking-10
