Speedy Laser Robots Laser Welding Machine
Laser Source: Max / Raycus Laser Brand: Speedy Laser Model : SL-RT 2000W / 3000W HS Code: 8515809090
Brief Information: Laser Power : 2000watt / 3000watt Cooling : Water Cooling Machine weight : 350 KG Delivery time: 15-20 days after payment Global Shipping: Ship by Sea

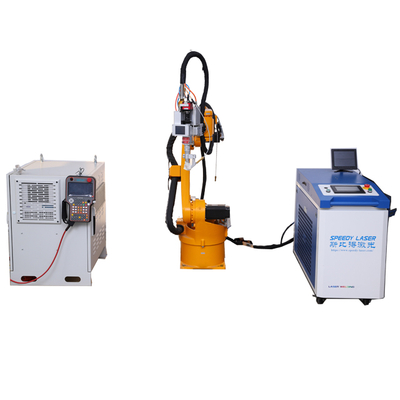

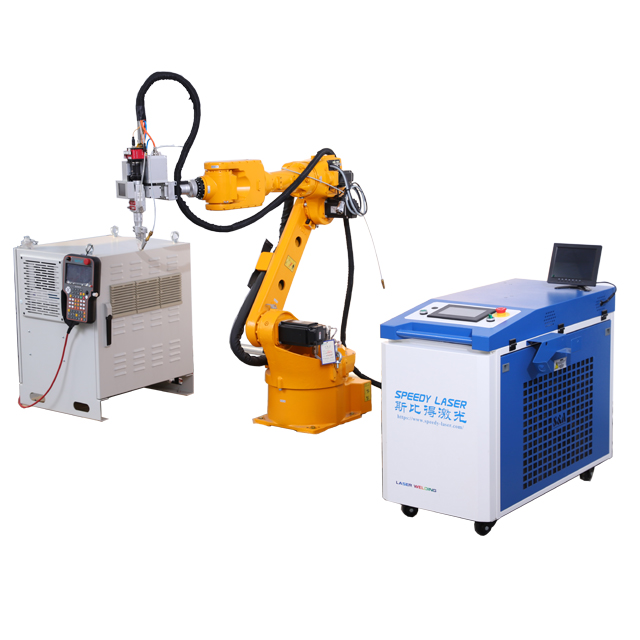

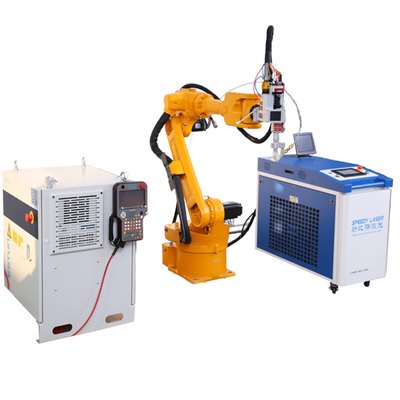

The Robot Laser welding is a programmable automated welding device that uses laser as a heat source. It primarily consists of a robotic arm system, a laser source, an optical system, and a control system. It utilizes a continuous or pulsed laser for non-contact processing and is equipped with position correction and anti-smoke optical lenses.Welding speeds can reach 6-12 meters per minute, supporting a minimum weld spot diameter of 0.1mm and a soldering accuracy of 0.2mm. The system uses a touchscreen to set parameters such as power and temperature profile. Its integrated AI vision algorithm optimizes weld seam recognition, resulting in a 20% improvement in welding accuracy compared to previous generations.The device supports a variety of processes, including deep penetration welding, heat conduction welding, and filler wire welding. It can weld in all positions, including flat, vertical, horizontal, and overhead, addressing the challenges of welding highly reflective materials such as aluminum alloys. Typical configurations include a laser positioning sensor, a dual wire feeder push-pull mechanism, and a coaxial CCD monitoring module.
Nanjing Speedy Laser have strong laser engineer, we research many new laser application every year.
COMPANY PROFILE
Nanjing Speedy Laser Technology Co.,Ltd. professional laser machine manufacturer in China over 16 years. Our products including laser marking machine, laser cutting machine, laser welding machine and other industrial laser processing equipment.
ONE TOP SERVICE
Nanjing Speedy Laser always believe SERVICE important in machinery, not only seel machine but also sell service.
INDUSTRY SOLUTIONS
Nanjing Speedy Laser provide full sets laser machine solutions ( Marking, Welding, Cleaning, Cutting ), especially customized laser machine.
GLOBAL MARKET
Nanjing Speedy Laser attend different Exhibiiton such as Shanghai, Guangzhou, Germany, USA, Thailand etc.
OUR PARTNERS
Nanjing Speedy Laser keep good relation with our customer and suppliers, IPG, Raycus, MAX, JCZ, SinoGalvo, Wavelength etc.
PRODUCTS ON SCALE
Nanjing Speedy Laser have own 2000 Square meter factory, more then 30 people production about 1,000 sets machine every year.
GLOBAL CUSTOMERS
Nanjing Speedy Laser export machine to many Europe countries, USA, Canada, Chile, Brazil, Malaysia,Thailand etc.
Nanjing Speedy Laser have strong laser engineer, we research many new laser application every year.
COMPANY PROFILE
Nanjing Speedy Laser Technology Co.,Ltd. professional laser machine manufacturer in China over 16 years. Our products including laser marking machine, laser cutting machine, laser welding machine and other industrial laser processing equipment.
ONE TOP SERVICE
Nanjing Speedy Laser always believe SERVICE important in machinery, not only seel machine but also sell service.
INDUSTRY SOLUTIONS
Nanjing Speedy Laser provide full sets laser machine solutions ( Marking, Welding, Cleaning, Cutting ), especially customized laser machine.
GLOBAL MARKET
Nanjing Speedy Laser attend different Exhibiiton such as Shanghai, Guangzhou, Germany, USA, Thailand etc.
OUR PARTNERS
Nanjing Speedy Laser keep good relation with our customer and suppliers, IPG, Raycus, MAX, JCZ, SinoGalvo, Wavelength etc.
PRODUCTS ON SCALE
Nanjing Speedy Laser have own 2000 Square meter factory, more then 30 people production about 1,000 sets machine every year.
GLOBAL CUSTOMERS
Nanjing Speedy Laser export machine to many Europe countries, USA, Canada, Chile, Brazil, Malaysia,Thailand etc.
Laser welding beyond a doubt is the most flexible and simple means of direct part identification or serialization available today. The ability to mark on a host of different materials by simply changing various parameters, offers an unsurpassed control, flexibility, quality and speed versus other types of welding methods.
SPEEDY LASERAdvanced Technologies laser marking machine,Laser welding machine,Laser cutting machine, laser cleaning machine.available with an average power from 3W-30000W with perfect laser beam,motion integrated controls,free maintenance.
on-contact operation. The laser spot diameter can be as small as 0.1mm, and the soldering device can be as small as 0.2mm, enabling the soldering of fine-pitch package (surface-mounted) components.
Because the heating is localized and short-duration, the thermal impact on the substrate and surrounding components is minimal, resulting in excellent solder joint quality.
high efficiency during continuous operation. The surface temperature of the solder is measured non-contact, rather than using actual contact with the soldering tip.
1500W fiber laser source, the laser life 50,000 free maintenance.
Hand-held holding welding head is easily operated ,picking and moving.
Using special welding software .it has function of continuous laser beam ,and the adjustable output waveform,which can assure the precious and high-speed welding
1500W maximum welding 3-4mm stainless steel.
Core Accessories Analysis
YAG Lamp
Raycus / Max / JPT 1500W / 2000W / 3000W Fiber laser available, according to welding products.

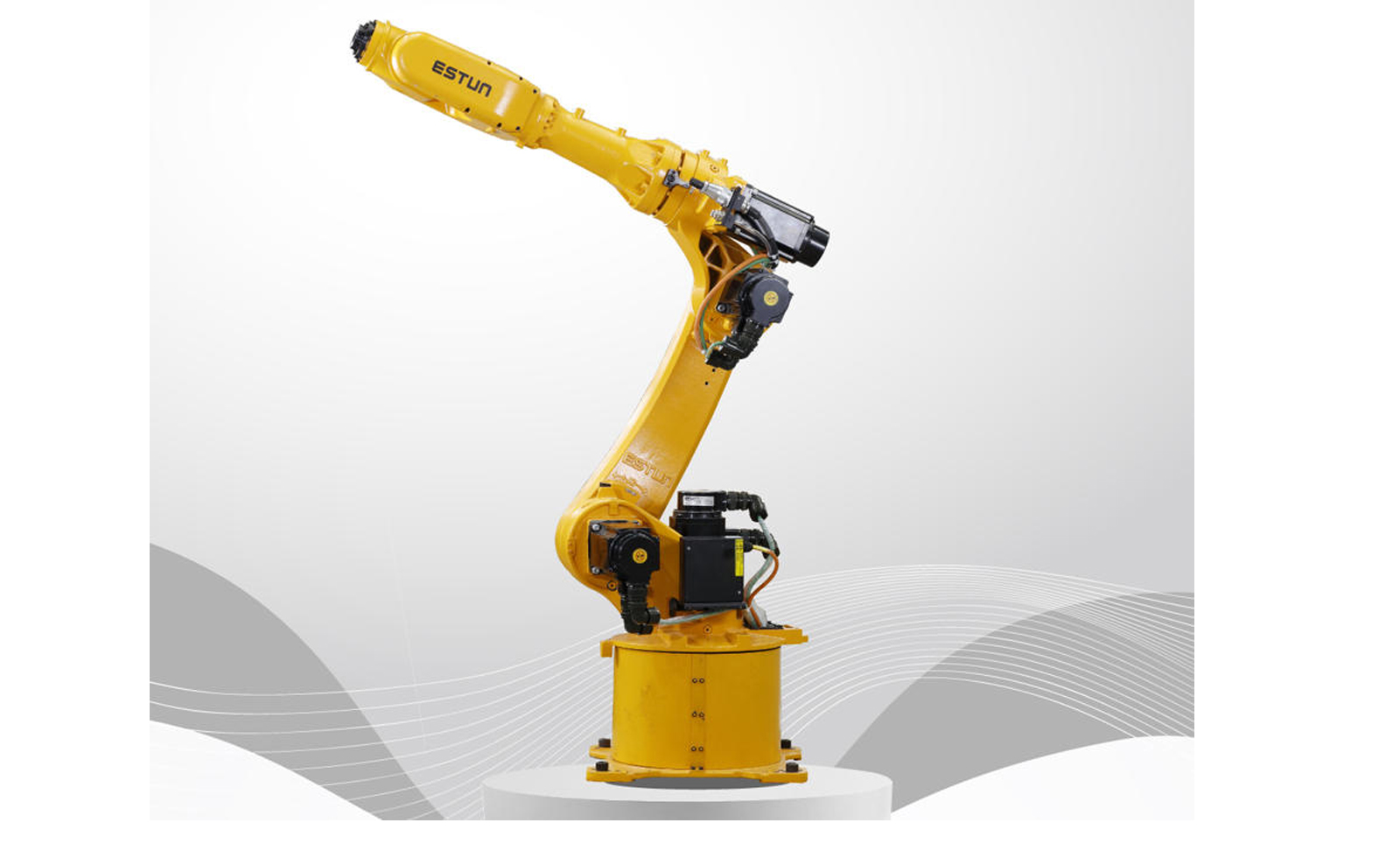

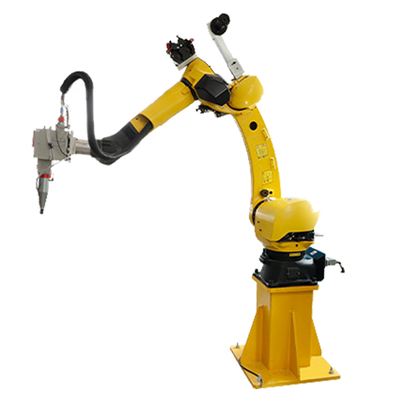

Robot
Six-axis robot is equipped with an advanced dynamic model to achieve global acceleration and deceleration planning and precision assurance. It has an arm span of 1500mm, an IP67 protection grade, and a simple operation procedure.
Water Cooling
S&A brand 3P Water Chiller.The temperature controller offers high precision temperature control of ±0.3°C and two user-adjustable temperature control modes - constant temperature mode and intelligent control mode.The water level indicator has 3 color areas - yellow, green and red.
Samples Show
FAQ
Q: Whats advantage Hand Held Laser Welding ?
A:Laser Compare tradition Argon welding, Laser welding speed much fast welding.Flexible and convenient, with longer welding distance, it can overcome the limitations of workbench space and can be used when automatic welding cannot be performed when the workpiece size is not uniform. It is mainly used for large workpieces and fixed positions such as inner right angles, outer right angles, and flat seam welding. The heat affected area during welding is small, the deformation is small, and the welding depth is large and the welding is firm.
Q: How choose Laser Power Welding ?
A:At Present Laser welding power 1500W, 2000W and 3000W. 1500W can welding through 3mm stainless steel / mild steel, 2000W can welding 4-5mm stainless steel / mild steel, 3000W can welding 6-8mm stainless steel / mild steel, so customer need check how much metal sheet welding then choose correct Power welding.
Q: How Trust Speedy Laser ?
A:SPEEDY LASER always suppoed do buisness together should trust each other, business long time cooperation we focus on Long term cooperation,old customer very important for company life.So we keep very honesty to all customer. Of course we never cheating customer.
Q: How Place Order with Speedy Laser ?
A: Laser Machine very sensitive materials we should know clients details requremets,such as what is material welding ? How much metal welding thickness? After we know these information our seller will suggest correct machine and send Offer, Customer pay by bank we ship machine out.
