Evaluating whether a transition makes sense remains a primary buyer dilemma. Fabrication shops must determine if this advanced technology fits their exact structural needs. Everyday fabrication requirements vary wildly across different production environments. The reality is quite complex because maximum welding thickness is never a static number. Instead, it acts as a dynamic variable dictated by several physical factors. Wattage, material reflectivity, joint design, and multi-pass techniques all dictate final penetration capabilities. If you ignore these variables, you risk poor weld integrity. We designed this guide to provide a realistic, manufacturer-agnostic framework. You will learn how to accurately match laser power to specific penetration requirements. Ultimately, this ensures you avoid underpowering your production lines or overpaying for unnecessary wattage. Let us explore the science of laser penetration together.
Penetration depth scales with power, but material reflectivity (e.g., aluminum vs. carbon steel) drastically alters maximum thickness limits.
A **1500W Handheld Laser Welding Machine** typically handles steel up to 3mm (single pass), acting as the sweet spot for thin sheet metal fabrication.
A **2000W Handheld Laser Welding Machine** bridges the gap into medium fabrication, penetrating 4-5mm of steel.
A **3000W Handheld Laser Welding Machine** pushes limits up to 8-10mm on steel, though it requires precise joint fit-up and often benefits from dual-pass techniques.
Real-world thickness limits are constrained by part fit-up tolerances; laser welding requires much tighter gaps than traditional MIG/TIG.
Optical reflectivity and thermal conductivity serve as the primary gatekeepers of penetration depth. Different metals react to focused light in vastly different ways. Materials like aluminum, copper, and brass reflect a massive percentage of incoming laser energy. They also dissipate heat incredibly fast. You need significantly more energy to achieve the same penetration depth in these metals compared to carbon or stainless steel. A machine might effortlessly slice through thick stainless steel. However, it will struggle against a much thinner piece of raw aluminum. Operators must always adjust expectations based on the specific alloy on the table.
Spot size and energy density also play a critical role. Focus dictates penetration completely. A smaller spot size increases the concentrated energy density. This creates a deep, narrow keyhole effect in the metal pool. Keyhole welding allows for maximum vertical penetration. Conversely, operators sometimes widen the focus or use oscillation modes. We call this a beam wobble. Wobble improves gap bridging across poorly fitted joints. However, this wider beam spread sacrifices vertical depth. You trade extreme penetration for better surface coverage.
Single-sided versus double-sided techniques heavily influence manufacturer specifications. You must read equipment claims carefully. When a brand claims their system can weld 10mm plates, you need clarification. They rarely mean a full 10mm deep cut from one side. Often, this assumes a 5mm penetration depth from both sides. We call this a double-pass technique. Always demand explicit single-pass metrics. This ensures you understand the true, unassisted capability of the equipment before purchasing.
Equipment wattage establishes the absolute ceiling for your fabrication limits. We can break down the practical thresholds across three standard power tiers. These tiers align directly with typical manufacturing demands. Choosing the correct tier requires a clear understanding of your daily material flow.

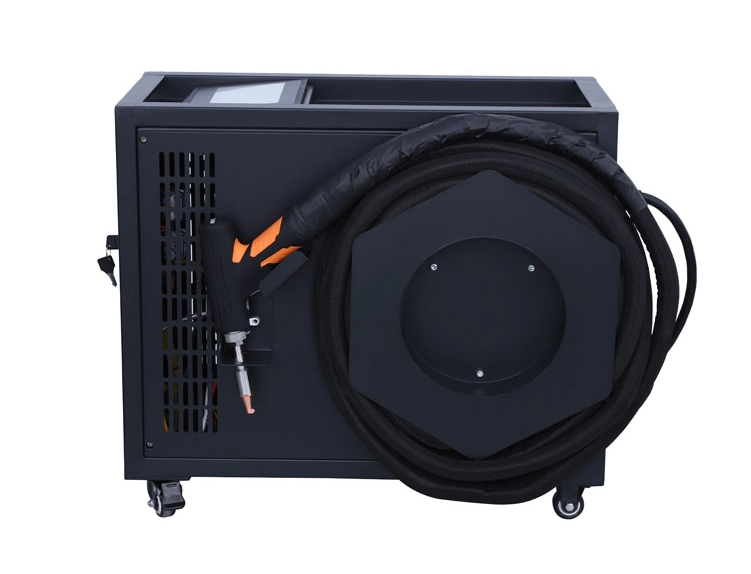

The 1500W Handheld Laser Welding Machine serves as the industry standard for light fabrication. This power level excels in specific, high-detail environments. It works perfectly for thin-gauge enclosures, commercial kitchenware, and HVAC ducting. Operators find it incredibly easy to maneuver.
For carbon and stainless steel, expect roughly 3mm of single-pass penetration. The beam creates a beautiful, clean bead at this depth. For reflective materials like aluminum or galvanized steel, penetration drops to approximately 2mm. Galvanized materials introduce zinc coatings. The zinc vaporizes quickly, so lower power often provides better control.
The business case here is clear. This unit directly replaces manual TIG processes. It delivers highly aesthetic, distortion-free welds on thin materials. You eliminate tedious post-weld grinding. Heat-affected zones shrink dramatically, keeping thin sheets perfectly flat.
Stepping up introduces the 2000W Handheld Laser Welding Machine. This tier bridges the gap into medium fabrication. It represents a significant jump in thermal energy. This unit handles automotive parts, structural frames, and medium-gauge assemblies easily.
On carbon and stainless steel, single-pass penetration reaches 4mm to 5mm. The keyhole remains stable at these depths. When welding aluminum, you can achieve 3mm to 4mm of penetration. The extra 500 watts overcomes aluminum's natural reflectivity much faster. This prevents the beam from bouncing off the surface.
Job shops consider this the most versatile choice available. Shops rarely process only thin or only thick metals. They deal in mixed material gauges daily. The 2000W threshold provides enough overhead for structural components while remaining nimble enough for sheet metal.
The heavy-duty tier belongs to the 3000W Handheld Laser Welding Machine. This equipment pushes the physical limits of manual operation. It serves heavy machinery manufacturers, thick pipe fabricators, and shipbuilding contractors. The thermal output requires serious respect.
This power level achieves massive single-pass penetration. It reaches 8mm to 10mm in carbon and stainless steel. In aluminum, operators can push 6mm to 8mm in a single pass. These depths previously required multi-pass MIG setups. Now, they happen in seconds.
The business case revolves around replacing heavy MIG processes. However, this power demands serious infrastructure. You must install robust Class 4 safety enclosures. Facility power requirements increase exponentially. High-power units pull significant amperage from the grid.
Laser Wattage | Carbon / Stainless Steel (Single Pass) | Aluminum (Single Pass) | Best Fabrication Use Case |
|---|---|---|---|
1500W | ~3mm | ~2mm | Thin-gauge enclosures, kitchenware, HVAC |
2000W | ~4-5mm | ~3-4mm | Automotive parts, structural frames, job shops |
3000W | ~8-10mm | ~6-8mm | Heavy machinery, thick pipes, shipbuilding |
Wattage is only half the battle. Real-world operational conditions often dictate actual success on the shop floor. High-powered beams require fundamentally different preparation than traditional arc methods. You cannot simply point and shoot on poorly prepared joints.
The Gap Tolerance Limitation: Gap tolerance remains the primary implementation hurdle. Unlike traditional MIG setups, a standard focused beam is incredibly narrow. It often measures between 50 and 100 microns across. Because the beam is practically invisible, thick plates must feature near-perfect fit-up. Gaps must stay below 0.5mm. If the gap exceeds this limit, the beam simply passes through the empty space. It will not melt the adjacent edges. CNC-machined or laser-cut edges become mandatory for thick materials.
Role of the Wire Feeder: Many manufacturers include automated wire feeders. Adding a wire feeder helps bridge larger gaps. It adds necessary physical volume to thick joints. The wire melts into the pool, filling voids and creating a convex bead. Though highly useful, it introduces a secondary consumable requirement. Operators must also tune the wire feed speed to match the travel speed perfectly. Too fast, and the wire stubs out. Too slow, and the gap remains unfilled.
Gas Shielding Requirements: Shielding gas protects the molten pool from atmospheric contamination. Welding thicker materials requires optimized gas flow. Operators typically use pure Nitrogen or Argon. Deep keyholes trap oxygen easily. Proper gas coverage prevents porosity deep inside the weld pool. Consistent gas flow directly influences consumable usage rates and overall operational efficiency. If you skimp on gas, your deep-penetration joints will fail X-ray inspections.
Selecting the correct system requires discipline. Buyers often fall into the trap of over-specifying their needs. They imagine the thickest possible plate they might ever encounter. Then, they buy a machine sized exclusively for that rare scenario. This approach strains facility resources.
We heavily advise following the 80/20 rule of purchasing. You should size the equipment based on the material thickness making up 80% of your production volume. If your shop processes 2mm sheet metal daily, but handles 10mm plates once a month, buy for the 2mm. Do not over-invest for edge cases. A perfectly sized LASER WELDING MACHINE ensures peak daily efficiency. Edge cases can still utilize traditional arc methods or double-pass techniques.
Facility constraints also demand attention. Stepping up from a base model to a heavy-duty unit dramatically changes your infrastructure needs. Power draw requirements skyrocket. Heavy units require massive industrial chillers to manage internal heat. Furthermore, Class 4 safety enclosure mandates become strictly enforced. You cannot operate a multi-kilowatt beam in an open warehouse without endangering personnel.
Finally, consider scalability. At extreme thicknesses, manual operation becomes physically demanding. The heat radiation tires operators quickly. Consider when you might move away from manual operation entirely. Integrating a robotic cell makes repeatable, thick-plate manufacturing highly consistent. Automation removes the human variable from extreme-depth applications.
Maximum thickness capability is a proven science of wattage intersecting material properties. You can accurately predict penetration depths by understanding reflectivity, thermal conductivity, and beam focus. We know high-power systems rival traditional arc methods. They achieve incredible single-pass depths in heavy plates. However, they strictly demand much tighter part tolerances and superior joint fit-up.
Before you finalize any purchase, take a data-driven approach. Shortlist your preferred equipment suppliers carefully. Request manufacturers to provide macro-etch cross-sections of sample joints. Ensure they perform these tests on your exact material grades and specific joint designs. Visual proof of penetration is your best guarantee of long-term production success.
A: Yes, it can entirely replace MIG for 10mm plates. However, you must prepare the joints differently. High-power beams require virtually zero-gap tolerances. You need precise CNC-cut or machined edges. If your preparation time accommodates these tight tolerances, you will achieve faster travel speeds and vastly reduced heat distortion compared to traditional MIG.
A: Yes, travel speed directly impacts thickness. An inverse relationship exists between speed and penetration. Moving the torch quickly reduces the heat input at any given spot, resulting in shallower penetration. Slowing down allows the energy density to dig a deeper keyhole. Operators balance speed and power to achieve perfect depth.
A: It will not warp thin metal if configured correctly. Modern systems feature excellent power modulation. You can easily dial a high-power unit down to 10% duty cycle for thin sheets. However, buying a massive power source just to run it at low settings represents an inefficient capital expense for your facility.
