When selecting a Laser Marking Machine for industrial manufacturing applications, manufacturers require equipment that delivers permanent, high-precision marking on metal components while maintaining consistent quality across high-volume production runs. A fiber laser marking machine from a professional laser equipment manufacturer provides the precision, durability, and versatility necessary to meet the demanding requirements of modern industrial environments.
Speedy Laser, with over 16 years of experience in laser technology, offers industrial-grade laser marking solutions designed for B2B manufacturers seeking reliable metal marking equipment. Our fiber laser marking machines incorporate premium components including Raycus, JPT, and IPG laser sources to ensure consistent performance and longevity in continuous production settings.
Laser Marking Machine systems utilize high-powered fiber laser sources to create permanent marks on metal surfaces through controlled thermal interaction. The laser beam is directed through a galvo scanning system that precisely positions the focused energy onto the workpiece surface, creating permanent marks through annealing, engraving, or ablation processes depending on the material and desired mark type.
Modern industrial laser marking equipment operates at 1064nm wavelength, which is optimal for metal marking applications including stainless steel, carbon steel, aluminum, brass, copper, and alloy materials. The fiber laser marking machine delivers superior beam quality compared to alternative marking technologies, enabling crisp, high-contrast marks even on highly reflective metal surfaces.
The fundamental principle involves delivering precise laser energy to the material surface, causing localized heating that alters the surface properties to create visible marks. This process produces marks that are truly permanent and cannot be removed through wear, chemical exposure, or high-temperature environments, making it ideal for applications requiring lifetime traceability.
A professional-grade Laser Marking Machine incorporates several critical features that distinguish it from consumer or light-duty alternatives. The laser source selection significantly impacts marking capability, with options including standard Q-switched fiber lasers for general metal marking and MOPA pulsed lasers for specialized applications requiring adjustable pulse characteristics.
Key specifications to evaluate when selecting industrial marking equipment include marking speed measured in millimeters per second, repeat positioning accuracy measured in micrometers, maximum marking area dimensions, and the range of adjustable parameters including pulse width, frequency, and power output. These specifications determine the machine suitability for specific production requirements and material types.

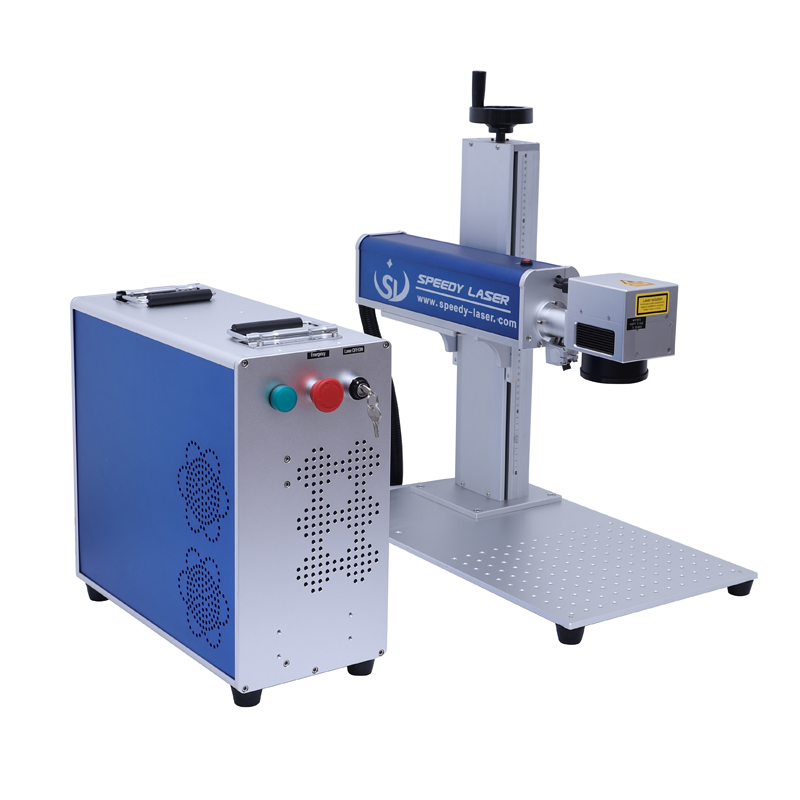

The SL-FM series from Speedy Laser exemplifies industrial-grade design, featuring marking speeds up to 6000mm/s with positioning accuracy of +/-0.01mm. The air-cooled design eliminates water cooling requirements, reducing maintenance complexity and operational costs while enabling deployment in diverse manufacturing environments.
Advanced laser marking systems include professional software integration capabilities, supporting standard file formats including DXF, PLT, and AI for direct import of marking designs. Touch screen interfaces and intuitive parameter controls enable operators to quickly configure marking jobs, reducing changeover time in mixed-production environments.
Production efficiency depends critically on marking speed, particularly for manufacturers processing high volumes of components. Industrial fiber laser marking machines achieve marking speeds of 3000-7000mm/s depending on marking parameters and material, enabling rapid processing of serialized parts, QR codes, and data matrix symbols required for product traceability systems.
The high-speed galvo scanning system directs the laser beam with exceptional precision, maintaining consistent mark quality even at maximum scanning speeds. This capability enables manufacturers to achieve production targets without sacrificing mark quality or readability, critical for industries with strict quality control requirements including automotive, aerospace, and medical device manufacturing.
Optimized marking parameters reduce cycle times while maintaining required mark specifications. Professional marking software includes parameter libraries for common material-marking combinations, enabling operators to quickly select appropriate settings while providing flexibility for custom applications requiring specialized marking approaches.
Industrial applications demand exceptional repeatability and positioning accuracy to ensure consistent mark placement across production batches. Premium laser marking equipment achieves positioning accuracy of +/-0.01mm and repeatability of +/-0.005mm, essential for marking small components or placing marks within tight tolerances.
The rigid mechanical construction of industrial marking systems maintains alignment under continuous operation, preventing accuracy degradation that can occur in lighter-duty equipment. Cast iron bases and precision-machined components provide the stability necessary for high-precision marking applications.
Automatic focusing systems compensate for variation in workpiece height, ensuring consistent mark depth and quality even when positioning tolerance accumulate across multi-station production lines. This capability is particularly valuable for automated manufacturing cells where consistent mark quality must be maintained without manual adjustment.
Laser marking technology serves diverse industrial applications requiring permanent component identification, traceability marking, and product branding. The versatility of fiber laser marking machines enables deployment across multiple manufacturing sectors while maintaining consistent marking performance.
Automotive manufacturers utilize laser marking systems for VIN stamping, engine component identification, and supply chain traceability marking. The permanent nature of laser marks ensures identification remains legible throughout the vehicle lifecycle, meeting regulatory requirements for vehicle identification and recall management.
Electronics manufacturing relies on laser marking for PCB serialization, component branding, and production tracking. The non-contact marking process prevents damage to sensitive electronic components while delivering the precision necessary for marking small components including resistors, capacitors, and integrated circuits.
Medical device manufacturers require permanent marking for implant identification, surgical instrument traceability, and regulatory compliance. Laser marking provides the durability and biocompatibility required for medical device applications while meeting stringent documentation requirements for product traceability.
Different metal materials require adapted marking approaches to achieve optimal results. Stainless steel marking often utilizes annealing processes that create high-contrast marks without surface damage, while aluminum components may require adjusted power and speed parameters to achieve desired mark appearance.
Carbon steel responds well to standard fiber laser marking parameters, producing crisp marks suitable for industrial applications. Alloy materials including titanium, tool steel, and specialty alloys require careful parameter optimization to achieve consistent marking results, with MOPA laser sources offering the flexibility necessary for specialized applications.
Copper and brass present particular challenges due to their high reflectivity, but modern fiber laser marking systems effectively mark these materials when properly configured. The adjustable pulse characteristics of MOPA lasers enable optimization for challenging materials, providing versatility across diverse production requirements.
When evaluating laser marking equipment, comparing technical specifications across manufacturers provides insight into system capabilities and limitations. The following table summarizes key specifications for industrial fiber laser marking systems:
Specification | Standard Fiber Laser | MOPA Fiber Laser |
|---|---|---|
Power Range | 20W - 100W | 20W - 100W |
Wavelength | 1064nm | 1064nm |
Marking Speed | 3000-5000mm/s | 3000-7000mm/s |
Position Accuracy | +/-0.01mm | +/-0.01mm |
Pulse Width | Fixed 100-200ns | Adjustable 2-500ns |
Marking Depth | 0.01-0.3mm | 0.01-0.5mm |
Cooling Method | Air Cooled | Air Cooled |
Operating Voltage | 110V-240V | 110V-240V |
MOPA laser technology offers significant advantages for applications requiring adjustable pulse characteristics, including the ability to mark heat-sensitive materials, achieve color marking on stainless steel, and optimize for challenging reflective metals. The flexibility of adjustable pulse width and frequency enables a single machine to address diverse marking requirements.
Standard Q-switched fiber lasers provide reliable performance for general metal marking applications at competitive specifications. The fixed pulse characteristics simplify operation while delivering consistent marking results for standard industrial marking requirements.
Choosing the right laser marking equipment requires evaluating production requirements against available machine capabilities. Key considerations include expected production volume, mark specifications including depth and size requirements, material types to be processed, and integration requirements with existing production systems.
For high-volume production environments requiring maximum throughput, the SL-FM series with standard fiber lasers provides reliable performance at optimized marking speeds. The robust industrial construction ensures consistent operation across extended production shifts without accuracy degradation or maintenance requirements.
Applications requiring specialized marking capabilities benefit from MOPA technology, which enables pulse width adjustment for applications including stainless steel color marking, heat-sensitive material processing, and fine-detail marking on precision components. The investment in MOPA capability provides flexibility for diverse marking requirements.
Integration with automated production systems requires evaluation of communication protocols, fixturing requirements, and software compatibility. Professional laser marking equipment supports standard industrial communication protocols enabling integration with manufacturing execution systems and production automation platforms.
Industrial laser marking systems require minimal maintenance compared to alternative marking technologies, with no consumables required for operation. The solid-state laser design eliminates wearing components including lamps, crystals, and external modulators that require replacement in alternative laser technologies.
Regular cleaning of the focusing lens and protection glass maintains optimal beam quality and marking performance. Professional equipment includes warning systems that alert operators to conditions requiring maintenance, preventing degradation of marking quality from contaminated optics.
Environmental considerations including temperature stability and dust control impact long-term reliability. Industrial marking systems operate within specified temperature ranges while sealed optical paths protect internal components from airborne contamination in manufacturing environments.
Laser marking provides significant advantages compared to traditional marking methods including dot peen marking, chemical etching, and inkjet printing. The non-contact process prevents material damage while delivering superior mark quality and precision.
Dot peen marking creates marks through mechanical impact, producing raised or depressed characters that can collect contamination and degrade over time. Laser marking creates marks through controlled thermal interaction, producing smoother marks that maintain readability throughout the component lifecycle.
Chemical etching requires consumable etchants and generates hazardous waste requiring proper disposal. Laser marking eliminates chemical processes entirely, providing an environmentally responsible alternative that meets sustainability objectives while reducing operational complexity.
Inkjet printing requires regular consumable replenishment and produces marks that can be removed through chemical exposure or abrasion. Laser marking produces truly permanent marks that cannot be removed without damaging the underlying material, essential for applications requiring tamper-evident identification.
When evaluating Laser Marking Machine solutions, understanding the competitive landscape helps inform purchasing decisions. The following comparison highlights key differentiators:
Feature | Speedy Laser | Competitor A | Competitor B |
|---|---|---|---|
Laser Source | Raycus/IPG/JPT | Standard Chinese | Mixed Quality |
Power Options | 20W-100W Full Range | Limited to 50W | 20W-60W |
MOPA Available | Yes | No | Optional |
Marking Speed | Up to 7000mm/s | Up to 5000mm/s | Up to 4000mm/s |
Warranty | 2 Years | 1 Year | 1 Year |
Support | 24/7 Global | Business Hours | Limited |
Stock Availability | 100+ Units | Made to Order | Made to Order |
Speedy Laser comprehensive product range and established supply chain enable immediate delivery for most configurations while maintaining competitive pricing through efficient operations.
A: Industrial-grade fiber laser sources from quality manufacturers including Raycus, IPG, and JPT provide operational lifetimes exceeding 50,000 hours under normal operating conditions. The solid-state design eliminates consumables and wearing components that limit lifespan in alternative technologies.
A: Fiber laser marking systems effectively mark virtually all metal materials including stainless steel, carbon steel, aluminum, brass, copper, titanium, and alloy materials. Different materials may require parameter adjustment to achieve optimal marking results, with MOPA laser technology providing the flexibility necessary for challenging materials.
A: Industrial laser marking systems require minimal maintenance including periodic cleaning of external optics and verification of calibration. The solid-state laser design eliminates consumables and wearing components, reducing operational costs and maintenance requirements compared to alternative marking technologies.
A: Laser marking produces superior quality marks with higher precision and better edge definition compared to dot peen marking. The non-contact process eliminates mechanical stress on workpieces while producing smoother, more readable marks that maintain quality throughout the component lifecycle.
A: Power requirements depend on marking speed requirements, material types, and mark depth specifications. Standard applications typically utilize 20W-50W systems, while high-speed or deep-engraving applications may require 60W-100W power levels. MOPA technology enables effective marking across power levels through adjustable pulse parameters.
A: Modern industrial laser marking systems support standard communication protocols enabling integration with manufacturing automation systems. Professional equipment includes I/O signals for trigger control and status monitoring, facilitating integration with PLC controllers and manufacturing execution systems.
Investing in a professional laser marking machine from an established manufacturer ensures access to technical support, spare parts availability, and ongoing product development. Speedy Laser global service network and extensive experience in industrial laser applications provide the support infrastructure necessary for mission-critical manufacturing applications.
