Metal fabrication operations requiring high-quality welds with minimal heat input and distortion benefit significantly from laser welding technology. A Laser Welding Machine provides precise, controlled energy delivery for joining metal components with exceptional weld quality, narrow heat-affected zones, and high production throughput.
Speedy Laser offers comprehensive laser welding solutions including automated robot welding systems for high-volume production, table-mounted systems for precision component welding, and portable handheld units for field applications. Our equipment incorporates proven laser sources and precision motion systems to deliver consistent, high-quality welds across diverse applications.
Laser Welding Machine systems concentrate laser energy to achieve deep penetration welding with minimal heat input to surrounding material. The focused laser beam creates a keyhole effect where the vaporized metal creates a void that allows laser energy to penetrate deeply while surface tension maintains the molten pool for consistent weld formation.
The precise energy control of laser welding enables narrow heat-affected zones that minimize distortion and preserve material properties in the weld region. This characteristic proves particularly valuable for welding precision components, heat-sensitive assemblies, and applications requiring minimal post-weld processing.
The non-contact welding process eliminates electrode wear, consumable requirements, and contamination risks associated with traditional welding methods. The precise positioning capability of CNC-controlled systems ensures consistent weld placement and quality throughout production runs.
Automated Laser Welding Machine configurations utilize six-axis industrial robots to achieve complex weld path geometries while maintaining consistent torch orientation and travel speed. The robot arm positioning system provides the flexibility necessary for three-dimensional weld paths encountered in real-world fabrication.
Premium robotic welding systems incorporate precision servo drives and advanced path planning algorithms to maintain consistent travel speed throughout complex contours. The smooth motion profiles reduce mechanical stress while ensuring uniform heat input for consistent weld quality.
Robot-mounted laser welding heads require careful consideration of reach, payload, and protection from spatter and fume exposure. Quality systems incorporate protective housings and automatic cleaning systems that maintain optical component integrity in production environments.

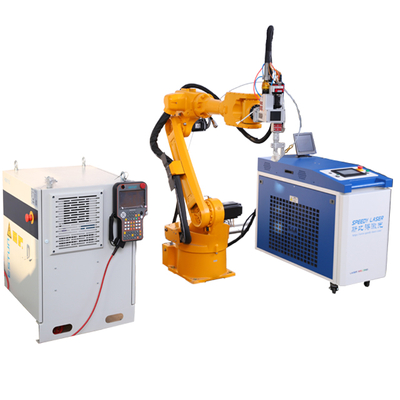

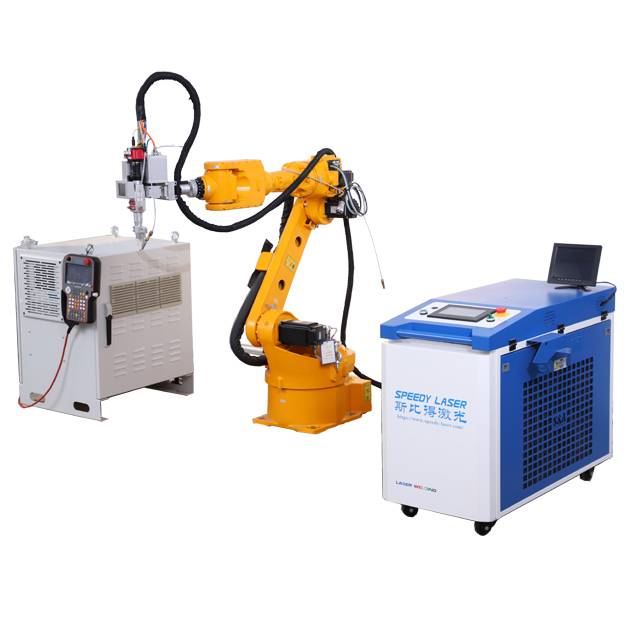

Robotic Laser Welding Machine configurations integrate industrial robot arms with laser sources, beam delivery systems, and welding accessories into coordinated production cells. The robot controller coordinates motion with laser parameters and wire feed systems for optimized welding performance.
Popular robot brands including ESTUN, FANUC, and ABB provide the reliability and support infrastructure necessary for production environments. The selection of robot platform affects payload capacity, reach envelope, and integration complexity with laser and welding accessories.
Positioner integration extends robot welding capability by presenting workpieces for optimal weld access. Two-station rotary positioners enable simultaneous loading and welding operations that maximize equipment utilization in production environments.
Portable Laser Welding Machine configurations address applications requiring flexibility beyond fixed station welding capability. Handheld laser welding systems combine laser sources with lightweight welding torches that provide operator maneuverability for welding large workpieces, complex geometries, and field applications.
The handheld approach achieves superior weld quality compared to traditional TIG or MIG welding while maintaining operator flexibility for diverse workpieces. The concentrated heat input reduces warping and distortion while producing visually appealing welds requiring minimal post-weld finishing.
Modern handheld laser welders incorporate advanced features including wire feed capability, adjustable pulse parameters, and ergonomic torch designs that reduce operator fatigue. The intuitive interface enables rapid training for operators experienced with traditional welding methods.
Handheld Laser Welding Machine power levels determine capability across material thickness ranges. Current systems range from 1000W entry-level units for thin material welding through 3000W+ configurations capable of welding substantial material thicknesses.
1000W-1500W handheld welders effectively join materials up to 3mm thickness, suitable for sheet metal fabrication, thin-wall tubing, and precision assembly applications. The compact, lightweight torches maximize operator control for detailed welding tasks.
2000W-3000W power levels extend capability to 4-8mm material thickness for heavier fabrication applications. The increased power enables faster welding speeds and deeper penetration for production-oriented applications requiring higher throughput.
Quality Laser Welding Machine systems incorporate premium components throughout the power delivery and motion control systems. Understanding these components enables informed evaluation of equipment options and their impact on welding performance and reliability.
Laser source selection significantly impacts welding capability and operational costs. Premium sources from Raycus, MAX, and IPG provide reliable performance with long operational lifetimes while budget options may offer attractive initial pricing with higher lifecycle costs due to reduced reliability and shorter service life.
Cooling systems maintain optimal laser source temperature for consistent power output. Water cooling provides efficient thermal management for high-power continuous welding applications while air cooling suits lower-power or intermittent welding requirements.
Wire feed systems enable filler metal addition for gap bridging, weld reinforcement, and material composition adjustment. The precision wire delivery of professional systems ensures consistent filler metal addition rates that maintain weld geometry and properties.
Professional Laser Welding Machine configurations include programmable wire feed systems with syncing to laser output for optimized process control. The closed-loop control maintains consistent weld parameters despite variations in joint fit-up or material thickness.
Gas shielding systems protect the weld pool from atmospheric contamination during the welding process. The flow rate and gas composition require optimization based on material type, joint configuration, and welding parameters.
Comprehensive specifications enable evaluation of laser welding equipment against application requirements. Key parameters include power level, welding speed capability, material thickness capacity, and positioning system specifications:
Specification | Entry Level | Production Level | High Power |
|---|---|---|---|
Power Range | 1000W-1500W | 1500W-3000W | 3000W-6000W |
Max SS Thickness | 3mm | 6mm | 10mm+ |
Max MS Thickness | 4mm | 8mm | 12mm+ |
Welding Speed | 0.5-3m/min | 1-6m/min | 3-12m/min |
Robot Reach | 1400mm | 1500mm | 2000mm+ |
Wire Feed Range | 0.8-1.6mm | 0.8-1.6mm | 0.8-2.0mm |
Cooling Method | Air Cooled | Water Cooled | Water Cooled |
Selecting appropriate power level ensures adequate capability for intended material thickness ranges while providing sufficient margin for production speed requirements. The welding speed specification directly impacts production throughput for volume manufacturing.
Laser welding serves diverse industrial applications requiring high-quality metal joining with minimal distortion and excellent productivity. The versatility of laser welding technology enables deployment across manufacturing sectors from precision electronics through heavy fabrication.
Automotive manufacturing utilizes laser welding for body-in-white assembly, powertrain components, and exhaust systems. The high speed and consistent quality support high-volume production requirements while the narrow heat-affected zone minimizes distortion in thin-sheet assemblies.
Kitchenware and appliance manufacturing benefit from laser welding excellent aesthetic results and minimal finishing requirements. The tight, clean welds produced by laser welding systems enhance product appearance while reducing post-weld cleaning and finishing labor.
Stainless steel welding requires attention to corrosion resistance and aesthetic appearance in the weld region. The controlled heat input of laser welding minimizes sensitization risks while producing aesthetically pleasing welds that often require no post-weld treatment.
Carbon steel welding with Laser Welding Machine systems achieves excellent weld quality with high production speeds. The deep penetration capability enables single-pass welding of substantial thickness while the narrow heat-affected zone minimizes distortion in precision assemblies.
Aluminum welding presents particular challenges due to the material high thermal conductivity and susceptibility to porosity. Higher power levels and adjusted parameters compensate for these characteristics while dry atmosphere welding or appropriate shielding gas selection minimizes oxide and porosity issues.
Achieving consistent weld quality requires comprehensive process control throughout the welding operation. Quality Laser Welding Machine systems incorporate monitoring and control features that support weld quality verification and process optimization.
Real-time monitoring of welding parameters including power, speed, and wire feed rate enables immediate detection of process deviations. The closed-loop control maintains consistent parameters despite variations in joint geometry or material properties.
Visual inspection criteria for laser welds differ from traditional welding methods due to the distinctive weld appearance produced by the keyhole welding process. Understanding acceptable weld appearance enables efficient quality verification while identifying genuine defects requiring repair.
Weld qualification procedures verify process capability for specific applications. Tensile testing, bend testing, and metallographic examination provide quantitative measures of weld quality while visual and dye penetrant inspection enables rapid production inspection.
Process qualification establishes documented parameters for production welding while in-process monitoring maintains parameter consistency. The combination of qualification and monitoring provides confidence in production weld quality.
Laser Welding Machine technology provides significant advantages compared to traditional arc welding methods for appropriate applications. Understanding these advantages enables selection of the optimal joining method for specific production requirements.
Heat input comparison reveals dramatic differences between laser and arc welding processes. Laser welding achieves equivalent or greater penetration with 80-90% less heat input compared to TIG welding, directly translating to reduced distortion and faster production speeds.
Welding speed comparison demonstrates productivity advantages of laser welding for continuous weld joints. The deep penetration capability enables single-pass welding of substantial thickness while the concentrated heat source produces narrow welds that minimize material consumption and post-weld processing.
When evaluating Laser Welding Machine options, the following comparison highlights key differentiators:
Feature | Speedy Laser | Competitor A | Competitor B |
|---|---|---|---|
Laser Source | MAX/Raycus | Standard Chinese | Mixed Quality |
Power Range | 1000W-6000W | 1000W-2000W | 500W-1500W |
Robot Brands | ESTUN/FANUC | Single Brand | Single Brand |
Max Speed | 12m/min | 6m/min | 4m/min |
Wire Feed | 0.8-2.0mm | 0.8-1.6mm | Fixed Size |
Warranty | 2 Years | 1 Year | 1 Year |
Speedy Laser comprehensive configuration options and applications engineering support enable optimized solutions for diverse welding requirements.
Evaluating laser welding investment requires comprehensive analysis of equipment costs, operational expenses, and productivity impacts. The higher equipment investment of laser welding systems often delivers favorable return through reduced labor costs, improved quality, and enhanced production capability.
Energy consumption of Laser Welding Machine systems depends on laser power level and duty cycle. Modern fiber lasers achieve wall-plug efficiency exceeding 30%, significantly better than traditional welding power sources and contributing to favorable operating cost comparison.
Consumable costs for laser welding are minimal compared to arc welding methods. No electrodes, grinding disks, or shielding gas consumed at traditional welding rates reduce consumable expenses while eliminating consumable handling and storage requirements.
A: Current handheld Laser Welding Machine systems effectively weld materials from 0.5mm thin sheet through approximately 8mm thickness depending on power level. 1500W units handle 1-3mm effectively, 2000W units process 2-5mm, and 3000W units enable welding up to 6-8mm materials.
A: Laser Welding Machine systems produce welds with narrower heat-affected zones, reduced distortion, and faster welding speeds compared to TIG welding. The precise energy control enables consistent weld quality while the automated systems maintain parameter consistency impossible in manual welding.
A: Laser welding effectively joins carbon steel, stainless steel, aluminum, and alloy materials. The specific parameters require optimization for each material type based on thickness, joint configuration, and quality requirements. Aluminum welding presents additional challenges requiring higher power and adjusted parameters.
A: Professional Laser Welding Machine systems require minimal maintenance including periodic inspection of optics and cleaning of protective windows. The solid-state laser sources are maintenance-free while the mechanical components follow standard industrial robot or positioning system maintenance schedules.
A: Laser welding offers advantages for many applications but may not suit all welding requirements. Thick section welding, outdoor field applications, and situations requiring specialized joint configurations may favor traditional welding methods. Evaluate specific requirements to determine optimal welding approach.
A: Laser Welding Machine systems with CNC control require programming capability for job setup while automated systems minimize operator skill requirements for production runs. The intuitive interface and consistent parameter control simplify operation compared to manual welding methods requiring extensive skilled labor.
Speedy Laser comprehensive laser welding solutions combine proven equipment with applications engineering support to ensure successful implementation. Our experience across diverse welding applications provides valuable guidance for process development and production optimization.
