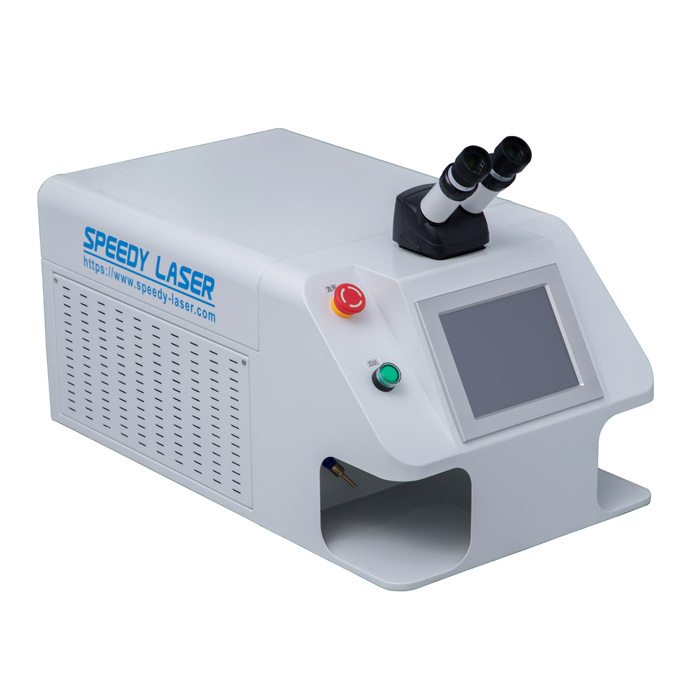

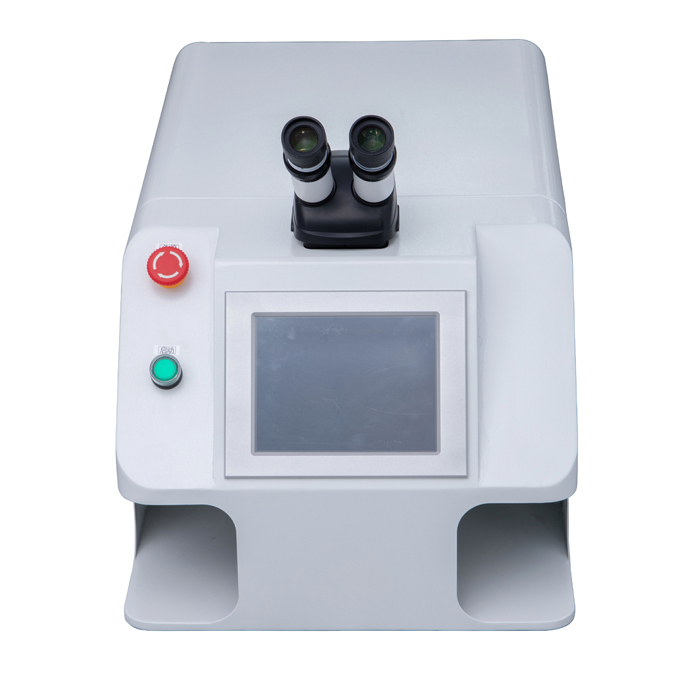

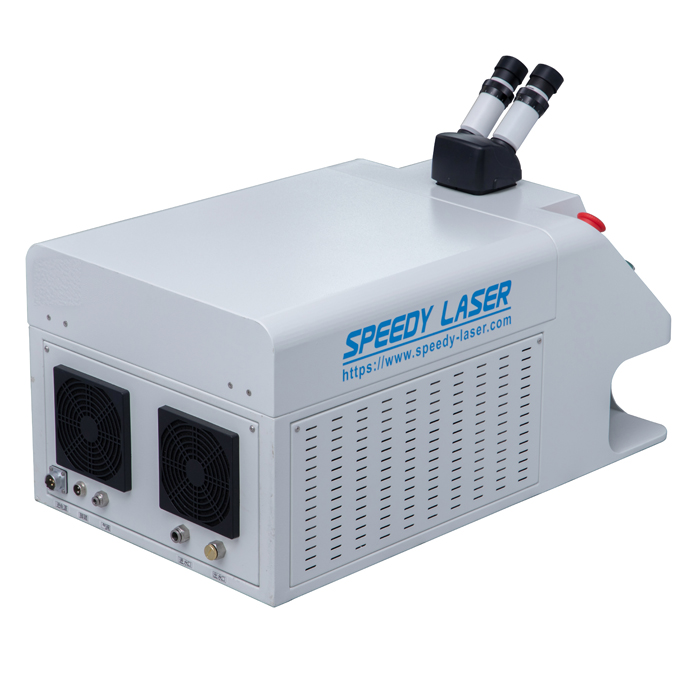

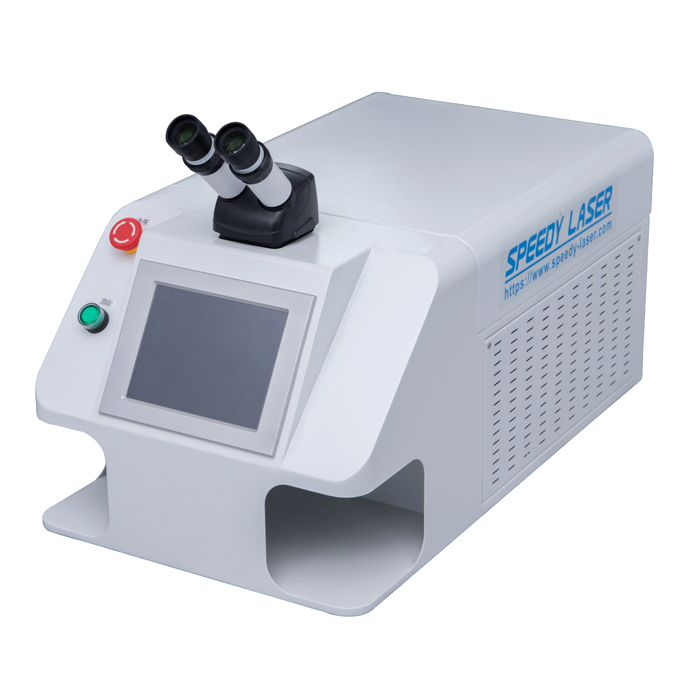

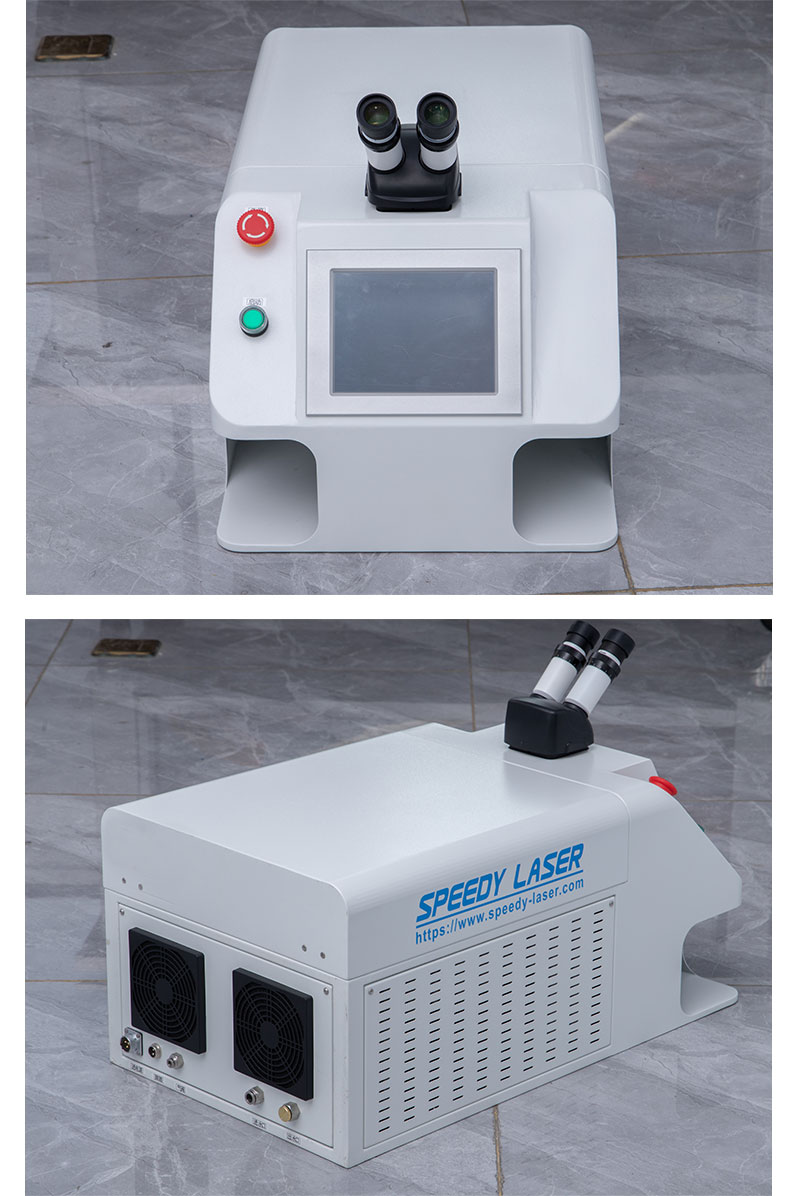

SL-WJ 100W
Speedy Laser
8515809090
| Laser Power: | |
|---|---|
Equipment features:
1). Energy, pulse width, frequency, spot size can be adjusted within a wide range, in order to achieve a variety of welding results. Parameter adjustment lever by a closed cavity, simple and efficient.
2). The British imported ceramic condenser cavity, corrosion resistance, high temperature, high photoelectric conversion efficiency, the condenser chamber life (8--10 years), xenon lamp life of more than 8 million times.
3). The world's most advanced automatic shading system, eliminating the time to protect the eyes.
4). With 24 hours of continuous work capacity,performance and stability, within 1,500 hours maintenance-free.
5). User-friendly design, ergonomic, long working hours without fatigue.
6). Speed, high efficiency, depth, small deformation, small heat-affected zone, high quality welding, spot clean, efficient and environmentally friendly.
Applications:
Widely used in aviation, aerospace, sporting goods, jewelry, golf club heads, medical equipment, aluminum dentures, instruments, electronics, machining, automotive and other industries, in particular for the fill hole silver platinum titanium stainless steel jewelry accessories point weld lines, precious stones and claw feet by welding.
Jewelry laser welding machine Technical parameters:
| Model | SL-WJ 100W |
| Laser type | Nd:YAG |
| Laser Wavelength | 1064nm |
| Laser Power | 100W |
| Laser Engery | 40J |
| Pulse Width | 0.2-1.5 ms |
| Pulse Frequency | 1-20 kHz |
| Beam Diameter | 0.1-1.5 mm |
| Observing System | Microscope |
| Chamber Illumination type | LED lamps |
| Parameters Memorization | 10 groups |
| Protection Alert type | Flow alert |
| Language Display | Chinese/English |
| Shield gas supply | One line |
| Cooling System | Water cooling |
| Power consumption | 6KW |
| Power Supply | 220V±10% /50Hz |
| Welding chamber dimensions | 300*450*150mm (L*W*H) |
| Machine Dimensions | 920mm*560mm*1220mm (L*W*H) |
| Running environment | 5-30 degree, 5%-75% humidity |
| Net Weight | 130kg(welder)+50kg(chiller) |
