Jewelry laser spot welding is an important way of laser materials processing technology applications, spot welding process is hot conduction type, laser radiation heating the surface, the surface of the heat through the heat transfer based internal diffusion, by controlling the laser pulse width, energy, peak power and repetition frequency and other parameters, so that the work piece to melt to form a specific pool. Because of its unique advantages, it has been successfully applied to gold and silver jewelry processing and micro, small parts welding.
Equipment features: 1). Energy, pulse width, frequency, spot size can be adjusted within a wide range, in order to achieve a variety of welding results. Parameter adjustment lever by a closed cavity, simple and efficient.
2). The British imported ceramic condenser cavity, corrosion resistance, high temperature, high photoelectric conversion efficiency, the condenser chamber life (8--10 years), xenon lamp life of more than 8 million times.
3). The world's most advanced automatic shading system, eliminating the time to protect the eyes.
4). With 24 hours of continuous work capacity,performance and stability, within 1,500 hours maintenance-free.
5). User-friendly design, ergonomic, long working hours without fatigue.

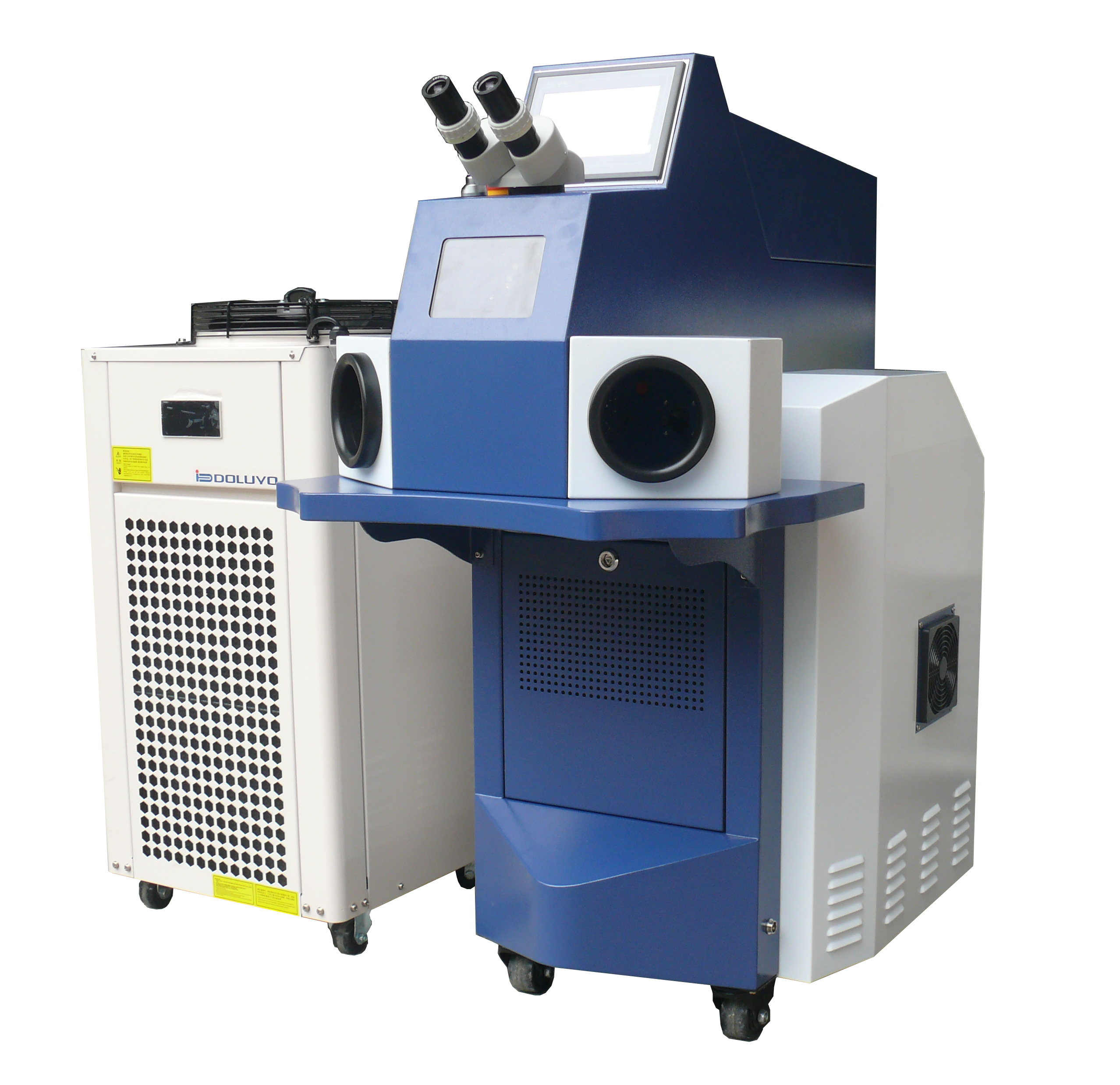

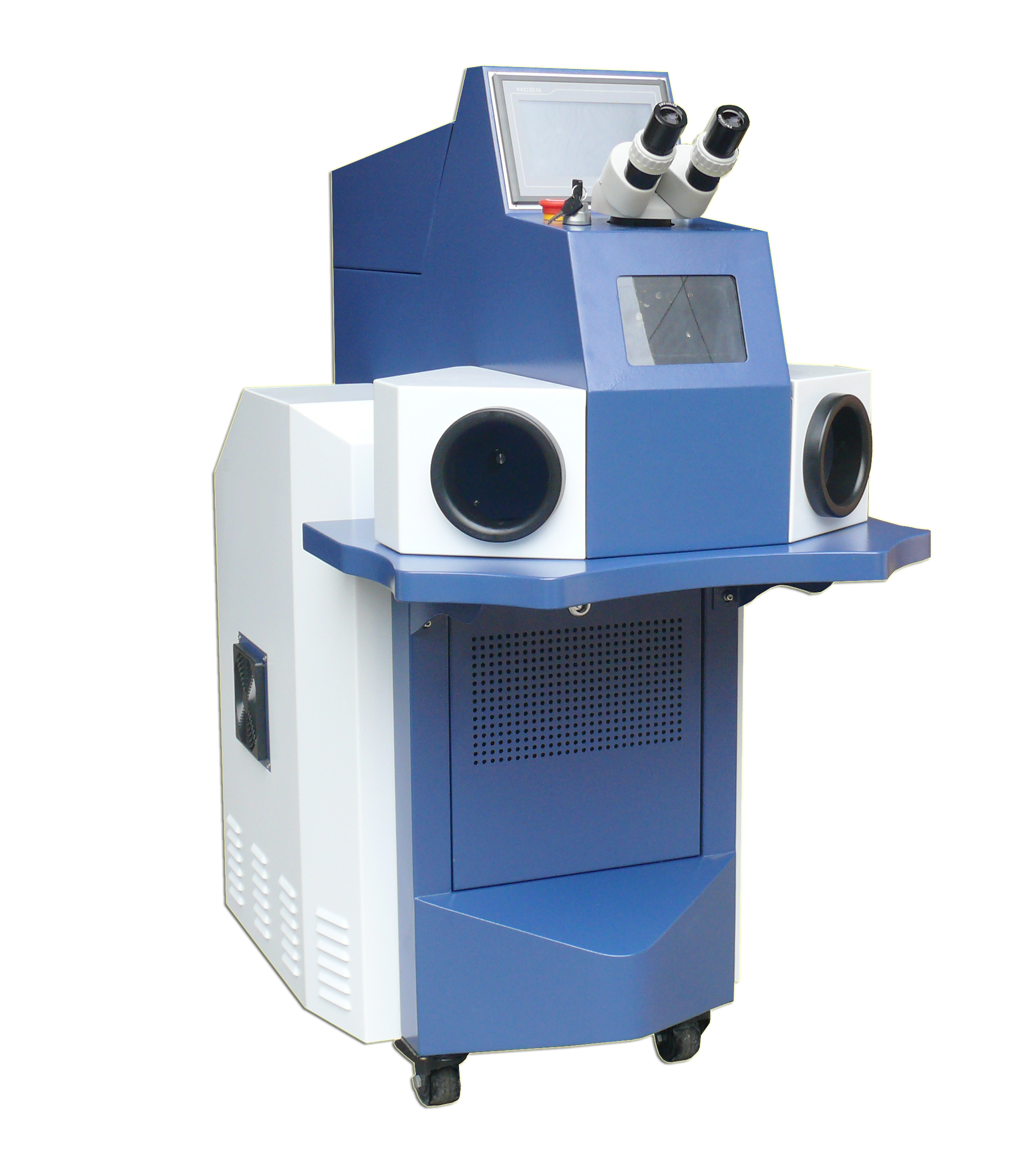

6). Speed, high efficiency, depth, small deformation, small heat-affected zone, high quality welding, spot clean, efficient and environmentally friendly. Applications: Widely used in aviation, aerospace, sporting goods, jewelry, golf club heads, medical equipment, aluminum dentures, instruments, electronics, machining, automotive and other industries, in particular for the fill hole silver platinum titanium stainless steel jewelry accessories point weld lines, precious stones and claw feet by welding. Jewelry laser welding machine Technical parameters:
Model
SL-WJ 200W
Laser type
Nd:YAG
Laser Wavelength
1064nm
Laser Power
200W
Laser Engery
80J
Pulse Width
less 20ms
Pulse Frequency
≤ 50Hz
Beam Diameter
0.1-3.0 mm
Observing System
microscope
Chamber Illumination type
LED lamps
Parameters Memorization
10 groups
Protection Alert type
Flow alert
Language Display
Chinese/English
Shield gas supply
One line
Cooling System
Water cooling
Power consumption
6KW
Power Supply
220V±10% /50Hz
Welding chamber dimensions
300*450*150mm (L*W*H)
Machine Dimensions
920mm*560mm*1220mm (L*W*H)
Running environment
5-30 degree, 5%-75% humidity
Net Weight
130kg(welder)+50kg(chiller)
Jewelry laser welding machine factory,welcome inquiry for details :
