Metal fabrication often faces a severe bottleneck on the production floor. You must balance pristine weld quality on thin materials against demanding production speeds. Skilled labor shortages make this balancing act even harder. Traditional TIG and MIG processes require years of rigorous training. They also slow down production lines when operators handle delicate stainless steel parts. Post-weld grinding eats up valuable manufacturing hours.

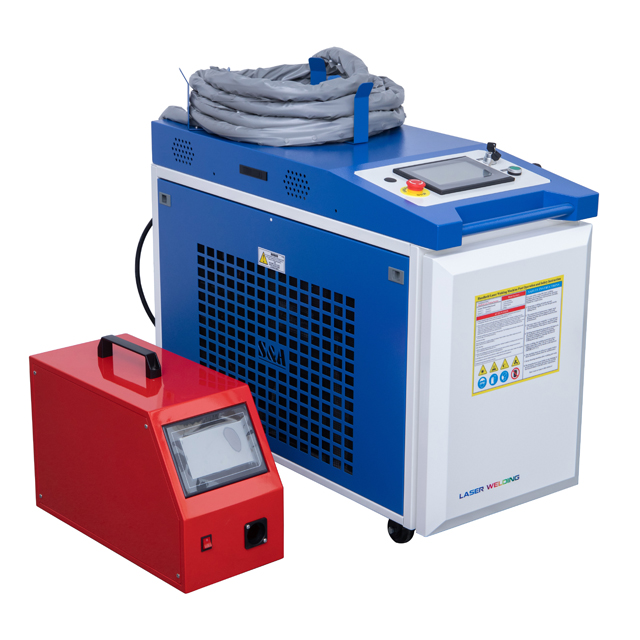

Enter the hand held laser welding machine. This technology is now a mature, production-ready replacement for conventional methods. It completely transforms how fabrication shops approach sheet metal applications. Quality and speed no longer contradict each other.
This guide skips the basic definitions. We focus strictly on the technical decisions driving successful adoption. We cover sizing power requirements accurately for your specific metal gauges. We evaluate modern cooling technologies for the factory floor. We also look at calculating realistic returns for immediate facility implementation. You will learn exactly how to integrate this equipment smoothly and safely.
Power Matching: Selecting between 1500W, 2000W, and 3000W depends strictly on maximum penetration requirements and material reflectivity, not just "more is better."
Thermal Control: Continuous wave laser welding drastically reduces the Heat-Affected Zone (HAZ), eliminating post-weld grinding and distortion in thin sheet metal.
Mobility vs. Duty Cycle: The shift toward the air cooling laser welder prioritizes factory-floor portability, but requires understanding ambient temperature limitations compared to water-cooled chillers.
Safety Imperative: Adoption requires strict Class 4 laser safety compliance, dedicated enclosures, and proper PPE—a critical implementation factor often overlooked.
Choosing the correct machine wattage is a critical first step. Many shop managers assume higher power automatically yields better results. This is a common purchasing mistake. You must match the equipment wattage to your primary material thickness. You must also consider your daily production volume. Over-purchasing wastes capital and increases electrical demands. Under-powering leads to weak joints and slowed production speeds.
The 1500W handheld laser welder serves as the sweet spot for light fabrication. It handles thin sheet metal beautifully. You will find it ideal for kitchen equipment, electronic enclosures, and architectural brackets. It reliably welds stainless steel up to 3mm or 4mm thick.
Best for: Thin sheet metal, precision brackets, and cosmetic enclosures.
Outcomes: It achieves maximum travel speed for thin-gauge materials. Operators avoid burn-through issues commonly seen on delicate parts.
Common Mistake: Pushing this unit to weld thick structural steel will result in shallow penetration and joint failure.

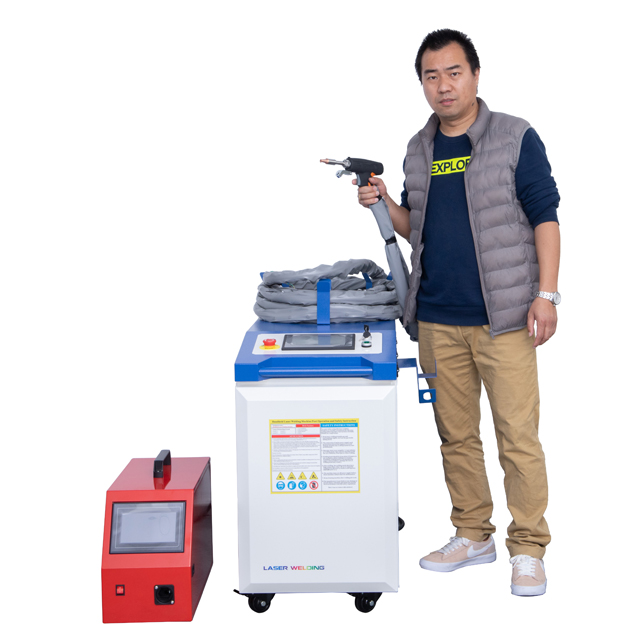

Mixed-fabrication shops require serious versatility. A 2000W portable laser welding system hits this middle ground perfectly. It delivers enough energy to tackle thicker plates while remaining gentle enough for sheet metal.
Best for: Job shops dealing across varied industries. It easily handles up to 5mm or 6mm stainless and carbon steel.
Outcomes: This system balances deep penetration capabilities against a manageable equipment footprint.
Best Practice: Keep parameter presets locked for different material gauges to ensure consistent results across operator shifts.
Heavy industrial applications demand maximum energy delivery. The 3000W hand held welder directly competes against heavy MIG processes. It pushes through thick aluminum and thick carbon steel.
Best for: Heavy-duty structural components, marine applications, and deep-penetration requirements reaching 8mm or more.
Outcomes: It replaces slow, multi-pass MIG welding entirely. However, it requires careful thermal management and draws significantly more facility power.
Safety Note: At 3000W, back-reflections from highly reflective materials like aluminum pose severe risks to the optic lenses. Always use appropriate angles.
Power Level | Max Penetration (Stainless Steel) | Ideal Application | Facility Power Requirement |
|---|---|---|---|
1500W | Up to 4mm | Thin sheet metal, enclosures, cosmetic seams | 220V Single-Phase (Typical) |
2000W | Up to 6mm | Mixed job shops, medium brackets | 220V Single / 380V Three-Phase |
3000W | Up to 8mm+ | Structural components, thick aluminum | 380V Three-Phase (Required) |
Understanding the internal mechanics of these machines ensures proper deployment. Beam delivery defines the weld quality. Cooling mechanisms dictate your factory floor mobility.
Modern equipment relies on continuous wave laser welding. Continuous wave (CW) fiber lasers deliver an uninterrupted beam of high-density energy. This creates a "keyhole" effect. The beam vaporizes the metal, forming a narrow, deep cavity. Molten metal collapses behind the beam as it moves. This leaves a solid, deep-penetrating joint.
Contrast this against older pulsed lasers. Pulsed lasers turn on and off rapidly. They work well for spot welding but struggle to create smooth, long seams. CW lasers provide absolute superiority for aesthetic requirements. They create perfectly smooth seams on stainless steel. You frequently achieve these results without using any filler wire.
Laser sources generate immense heat. How a machine handles this heat determines its duty cycle and physical footprint.
The Water-Cooled Reality: Water chillers provide exceptional thermal stability. They comfortably support high duty cycles and 3000W+ systems. However, water adds significant weight. It requires regular maintenance. Antifreeze becomes necessary in cold climates. The bulkiness limits true portability across a busy factory floor.
The Air-Cooled Advantage: The industry is shifting rapidly. An air cooling laser welder drastically reduces machine weight. It eliminates the water tank entirely. These units use advanced phase-change heat sinks. They are ideal for agile fabrication floors. You can easily roll them between workstations.
Implementation Risk: Air-cooled units face ambient temperature constraints. They pull in surrounding shop air to cool the system. If your facility reaches 40°C (104°F) in the summer, an air-cooled unit might trigger thermal alarms. Non-climate-controlled environments in hot regions often require water-cooled systems to guarantee continuous uptime.
The true value of this technology shines when handling difficult materials. Stainless steel represents the biggest headache for most fabricators. Lasers solve this bottleneck permanently.
Standard TIG welding pumps massive heat into 304 and 316 stainless steel. This broad heat-affected zone (HAZ) causes severe warping. It destroys the corrosion-resistant properties of the metal. It also creates ugly black discoloration. Workers spend hours grinding, polishing, and chemically passivating these welds.
Lasers apply a highly focused energy density. The heat stays localized within a tiny fraction of an inch. Warping disappears. Discoloration reduces to a light straw color, or none at all. This precise control slashes finishing times. Shops routinely report cutting grinding and polishing steps by over 80%. Chemical passivation becomes a quick wipe rather than an intensive bath.
You must prepare your parts differently for laser equipment compared to MIG welding. The focused beam behaves uniquely across different joint types.
Butt Joints: Excellent for autogenous (no filler) welding. Parts must fit tightly.
Lap Joints: Extremely fast processing speeds. Ensure tight clamping to prevent air gaps between the sheets.
Outside Corners: Lasers create beautiful, rounded outside corners on enclosures. This eliminates corner grinding entirely.
T-Joints: Highly effective, but operators must maintain a precise 45-degree gun angle to ensure equal penetration into both plates.
Gap Tolerance Realities: This process is highly sensitive to poor fit-up. The laser spot size measures only 1mm to 2mm. If a gap exceeds 0.5mm, the beam will simply pass through empty space. You must use automatic wire feed add-ons for bridging gaps in poorly fitted parts. The wire feeder pushes filler material directly into the weld pool, fixing imperfect sheet metal cuts.
Treating a laser welder like a standard MIG gun leads to disaster. Facility readiness and strict safety protocols separate successful adoptions from dangerous failures.
Before the machine arrives, verify your infrastructure. Power requirements dictate installation locations. A 1500W unit might plug into a standard 220V single-phase outlet. However, upgrading to 2000W or 3000W often mandates dedicated 380V three-phase electrical drops.
Gas supply logistics also require planning. Continuous wave laser welding on stainless steel requires shielding gas. Nitrogen is the standard choice. It prevents oxidation and maintains a bright finish. Argon also works well depending on metallurgical requirements. Lasers consume gas at roughly 15 to 20 liters per minute. You should secure bulk gas cylinders rather than relying on small, individual tanks to avoid constant changeovers.
We must discuss safety transparently. Handheld lasers are Class 4 devices. This is the highest and most dangerous classification for lasers. The invisible infrared beam will cause instantaneous, permanent blindness if it reflects into an unprotected eye. It will also ignite flammable materials across the room.
You cannot use standard welding curtains. You must implement specific setups:
Laser-Safe Enclosures: Build light-tight barriers using specialized laser-blocking materials. No line of sight can exist between the welding zone and the rest of the factory.
Interlock Systems: Connect the machine to the enclosure doors. If someone opens the door, the laser must shut off instantly.
Specialized PPE: Standard auto-darkening hoods offer zero protection against lasers. Operators must wear specialized OD6+ safety glasses designed specifically for the 1064nm wavelength.
Equipment sellers often promote the "zero training needed" myth. This is false. While it takes less time to master than TIG, operators still need proper instruction. They must understand focal length. If the nozzle pulls too far away from the metal, the beam loses energy density. Operators must also master travel angles. Pushing the weld puddle requires a steady hand to maintain consistent shielding gas coverage. Proper training takes two to three days to ensure both quality and safety compliance.
Securing capital for new technology requires a clear financial justification. Calculate your payback period based on tangible, immediate shop floor improvements.
Your return on investment comes from three primary channels. First, evaluate labor costs. You can transition semi-skilled labor to produce TIG-quality welds. You no longer need to pay premium rates for master welders to handle simple sheet metal boxes. Second, calculate the reduction in consumables. Track your current spending on grinding wheels, abrasive pads, and filler wire. The laser drastically reduces all three. Finally, measure throughput. Lasers routinely achieve 3x to 4x welding speed increases on linear sheet metal joints. A job taking 60 minutes often drops to 15 minutes.
Not all OEMs build reliable equipment. Use this checklist when shortlisting suppliers:
Laser Source Warranty: Demand clarity on the warranty. Premium sources like IPG or Raycus should carry multi-year guarantees.
Consumable Availability: Ensure replacement protective lenses and copper nozzles ship locally. You cannot afford to wait weeks for overseas parts.
Localized Technical Support: Ask if they have technicians within your country or state. Virtual troubleshooting only goes so far.
Sample Testing: The definitive next step is requesting a time-study. Send the supplier your specific material grades and ask them to weld sample parts. Compare the speed and visual quality against your current benchmark.
The hand held laser welding machine represents a transformative investment for modern metal fabrication. It bridges the gap between high production speed and flawless aesthetic quality. By properly matching wattage to your material thickness, you avoid costly operational errors. Adapting your facility for Class 4 safety ensures long-term, incident-free manufacturing.
We advise starting with a comprehensive audit of your current material thicknesses. Walk your shop floor and measure the gauges your team processes most frequently. Use this data to lock in the correct wattage and choose between air or water cooling.
Take action today to eliminate your production bottlenecks. Contact a trusted sales engineer to request a customized payback calculation. Send in your toughest sheet metal parts for a sample weld. Seeing the speed and quality on your own products will validate the investment instantly.
A: Yes, by switching the nozzle and adjusting software parameters, it can perform light cutting on thin sheet metal. However, it is not a replacement for a dedicated flatbed laser cutter. Handheld cutting is best reserved for quick, rough trimming or cutting out tack welds.
A: Modern air-cooled units rely on advanced phase-change heat sinks. They are designed for continuous use in normal ambient temperatures, usually up to 35°C (95°F). However, if your shop operates in extreme summer heat, a water-cooled system remains the safer choice for high-power demands.
A: Nitrogen is typically recommended for stainless steel. It maintains a bright, clean weld seam and prevents oxidation effectively. Argon can also be used depending on specific metallurgical requirements, but Nitrogen often produces a more aesthetically pleasing finish on 304 and 316 grades.
A: The process is highly sensitive. The laser spot is very small, typically ranging from 1mm to 2mm. Gaps larger than 0.5mm generally require an automatic wire feeder integration. The filler wire bridges the joint effectively, compensating for poorly fitted sheet metal parts.
